Motorola Astro XTL 1500 - RX Back-End-Poor SINAD or no Audio (136-174 Mhz)-Part 2 of 3

June 15, 2005 6815854H01-A
5-16 Troubleshooting Charts: Flowcharts
5.6.5 RX Back-End—Poor SINAD or No Audio (136–174 MHz)—Part 2 of 3

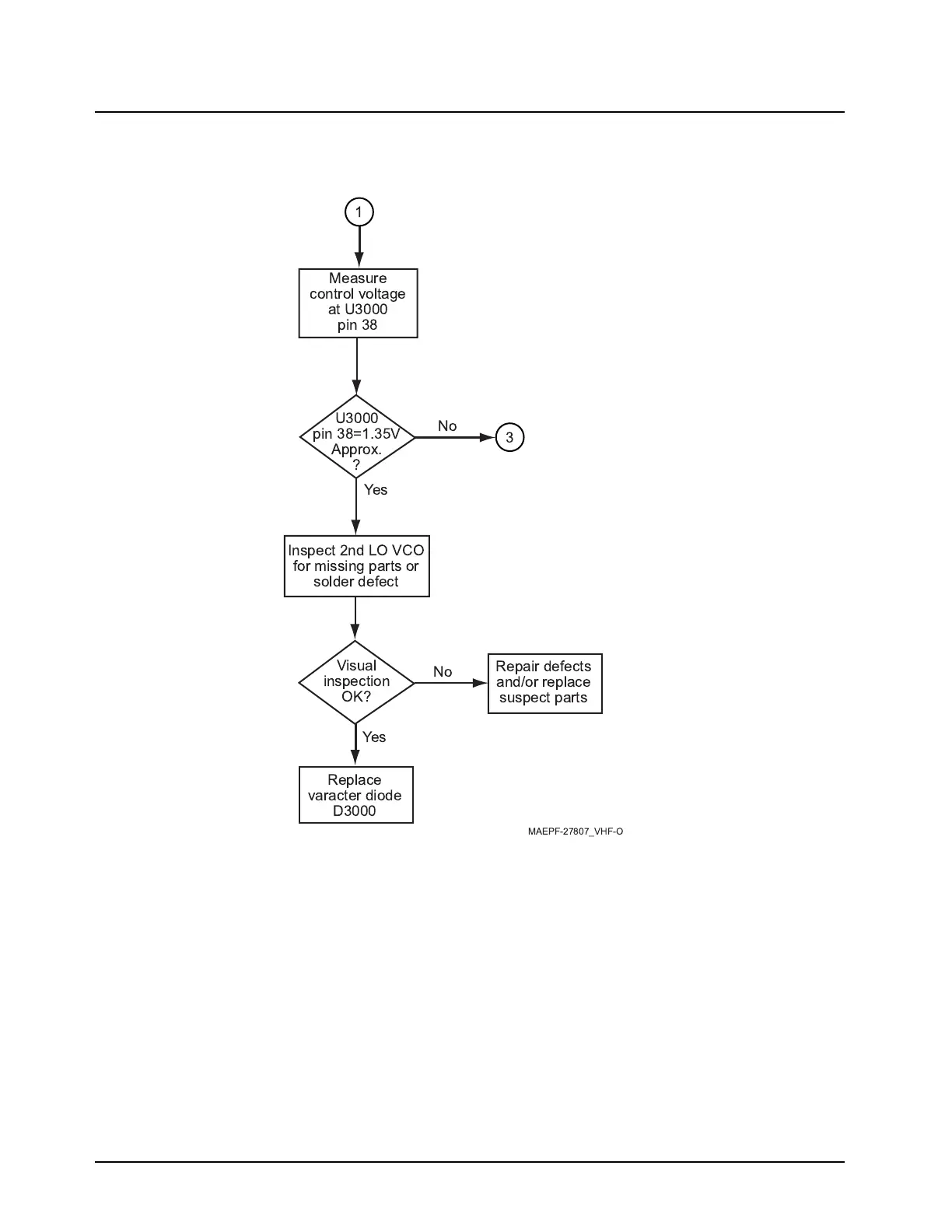

Figure 5-7. RX Back-End—Poor SINAD or No Audio (136–174 MHz)—Part 2 of 3





 



 
 
 
  !" #"
$ %  
  $




"&
' $
 ( 
 
'
  
)
