June 15, 2005 6815854H01-A
6-8 Troubleshooting Waveforms: XTL 1500 Waveforms

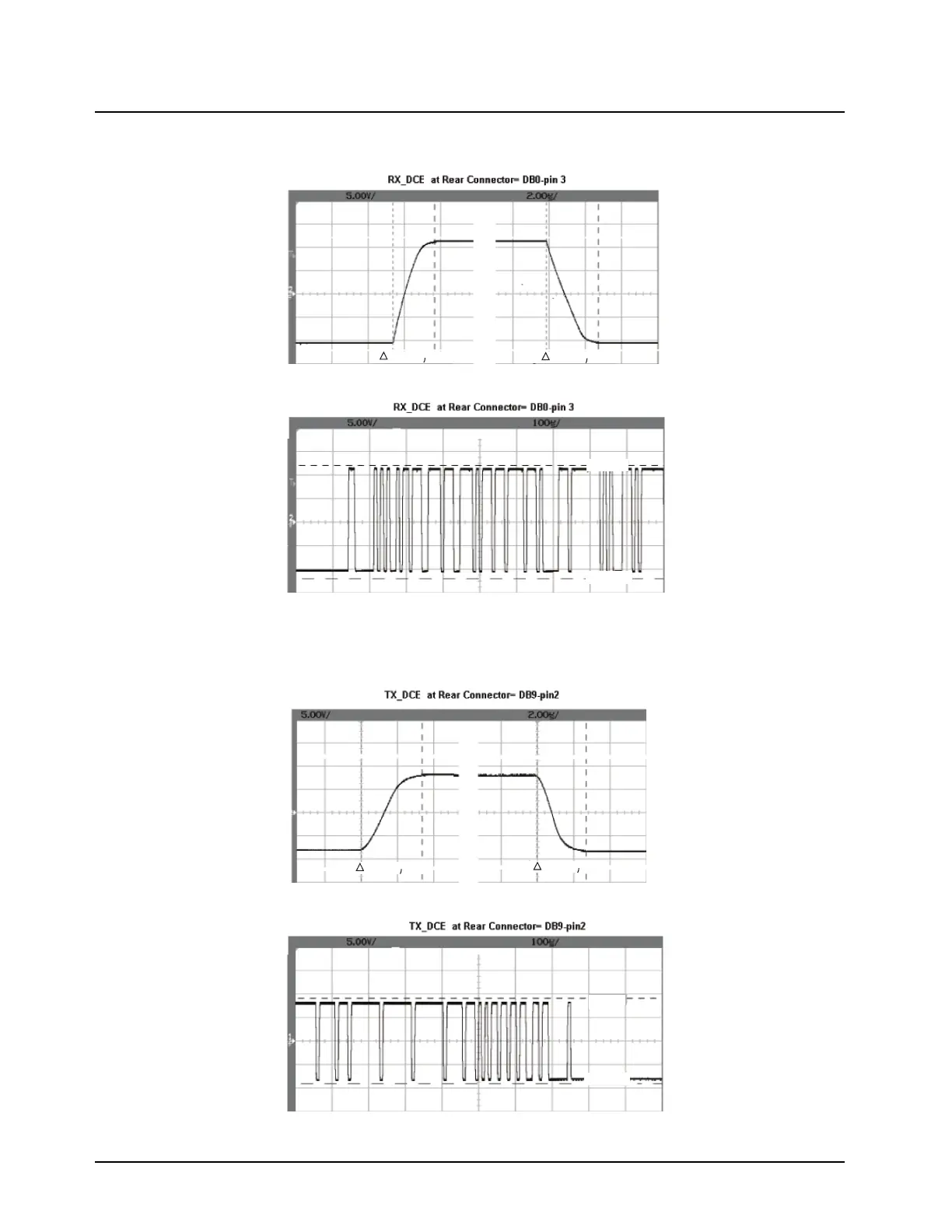

6.2.13 RS-232 RX Waveforms
6.2.14 RS-232 TX Waveforms
X = 2.9us
X = 2.3us
MAEPF-27705-A
+ 12V
- 12V
MAEPF-27706-A
X = 2.7us
X = 3.4us
MAEPF-27707-A
+ 9V
- 9V
MAEPF-27708-A
