3.9 Radio Power Distribution
This section provides information on DC power distribution in XTL 1500 radios. In the XTL 1500
radio, power is distributed to two boards: the main board and control head.
Power for the radio is supplied by the vehicle’s 12-V battery. When using a desktop adapter unit, an
external DC power supply can be connected to replace the vehicle’s battery source.
A+ (referred to as incoming unswitched battery voltage) enters the radio through the rear RF power
amplifier connector (J0950) and is the main entry for DC power. The second path, through J2, pin 25,
provides ignition sense to optionally inhibit radio turn-on when the ignition switch is off. This feature
is programmable through the CPS.
When the control-head On/Off knob is turned on, the three 9.3-V regulators power on the controller
section, the RX/frequency generation unit (FGU) section, and the TX section. See Figure 3-12 for the
UHF Range 1 and UHF Range 2 bands or Figure 3-13 on page 3-16 for the VHF and 700-800 MHz
bands.

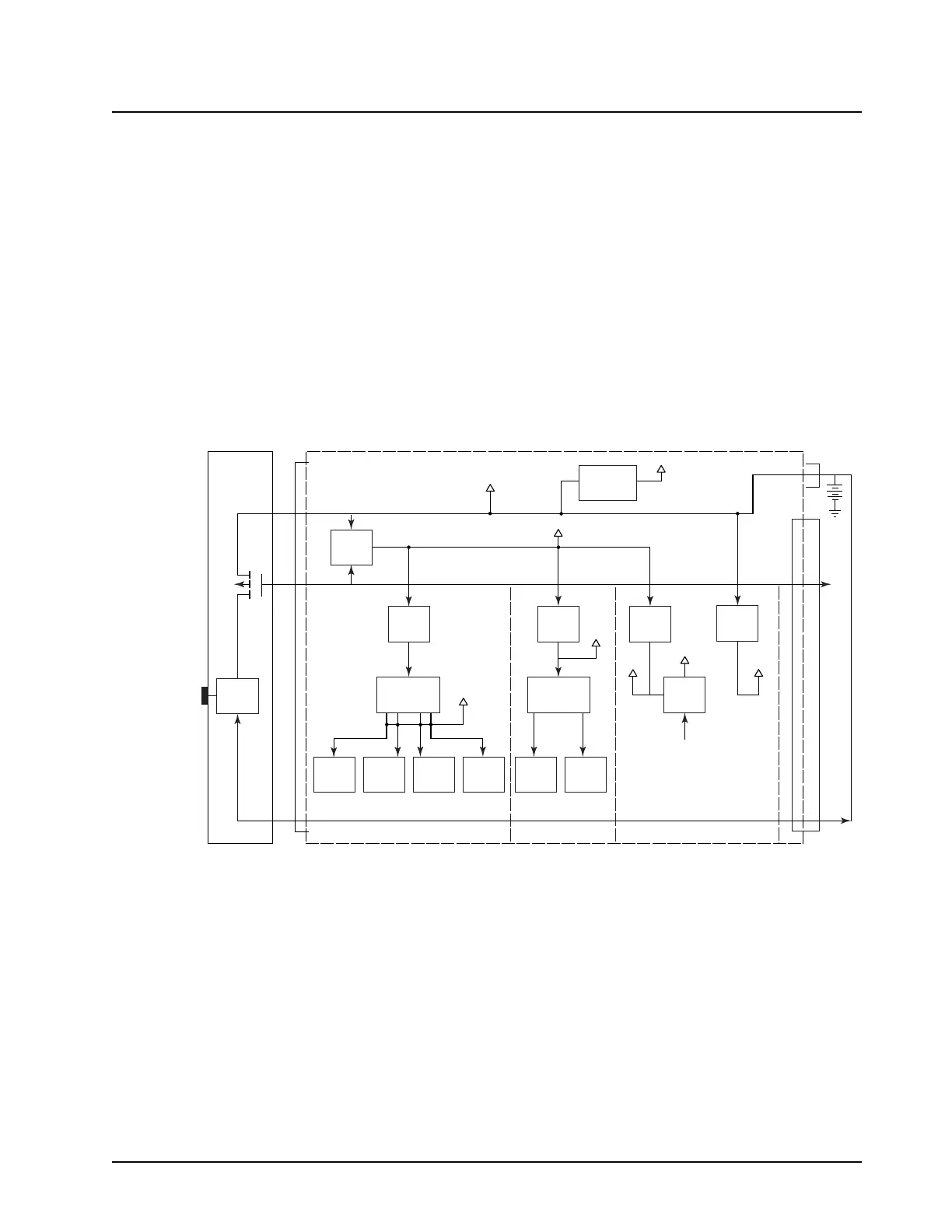

Figure 3-12. DC Voltage Routing Block Diagram (UHF Range 1 and UHF Range 2)
