Symbol Density / Bar Code Type
Typical Working Ranges
Near Far
100%
UPC-A
2.00 in
5.10 cm
See Note 2
15.75 in
40.0 cm
20 mil
Code 39
1.50 in
3.80 cm
See Note 2
24.0 in
61.0 cm
Note:
1 Distances measured from front edge of scan engine chassis.
2 Near distances are Field of View (FOV) limited.
3 Maximum allowable roll angle of symbols relative to the engine mounting base plane is +/- 3.0
degrees.
TC55 Connector Pin-Outs
Headset Connector

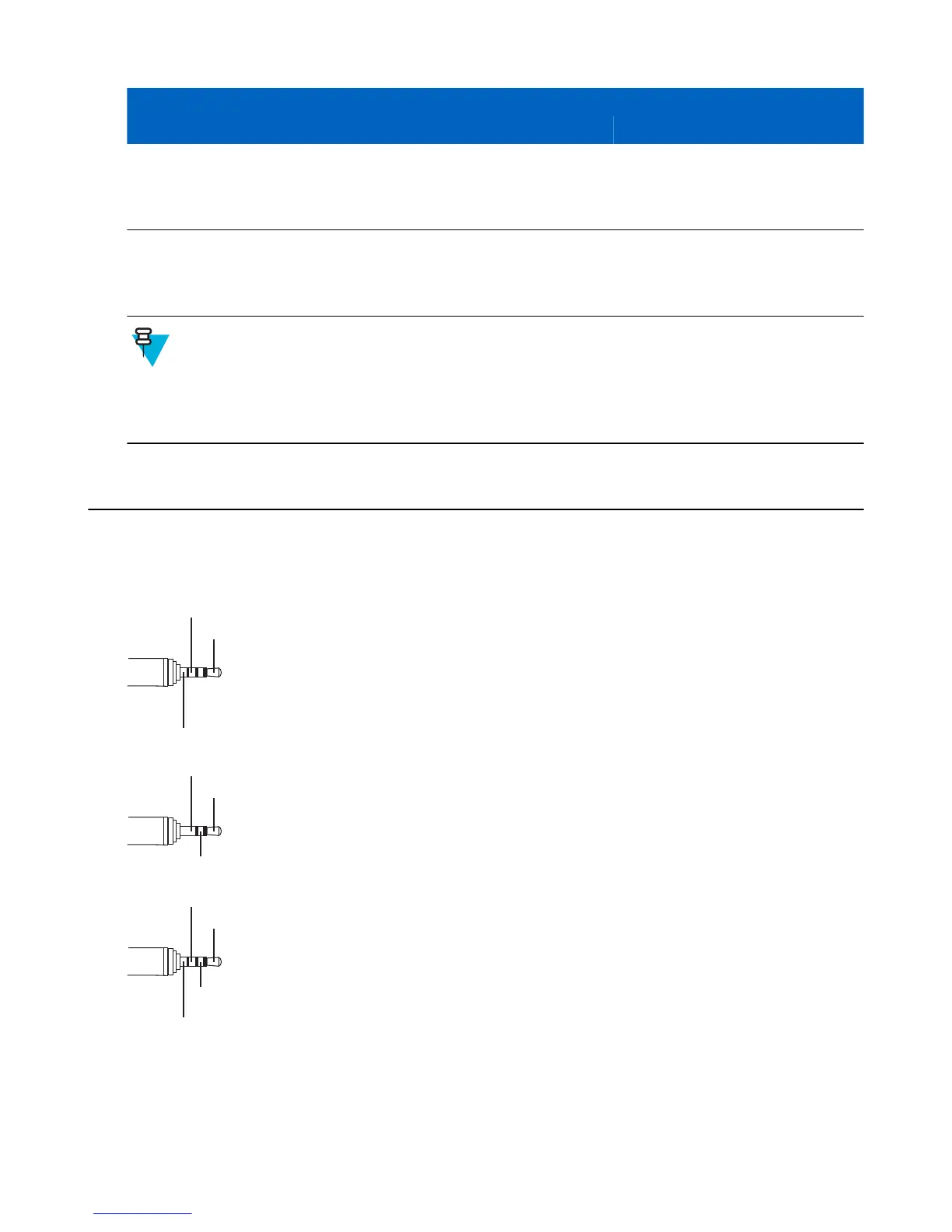

Figure 79: Headset Connector
SPKR
GND
MIC
Mono Headset
SPKR (L)
GND
SPRK (R)
Stereo Headphones
SPKR (L)
GND
SPKR (R)
MIC
Stereo Headset
132 | Technical Specifications
Send Feedback | October 2013 | MN000017A01
