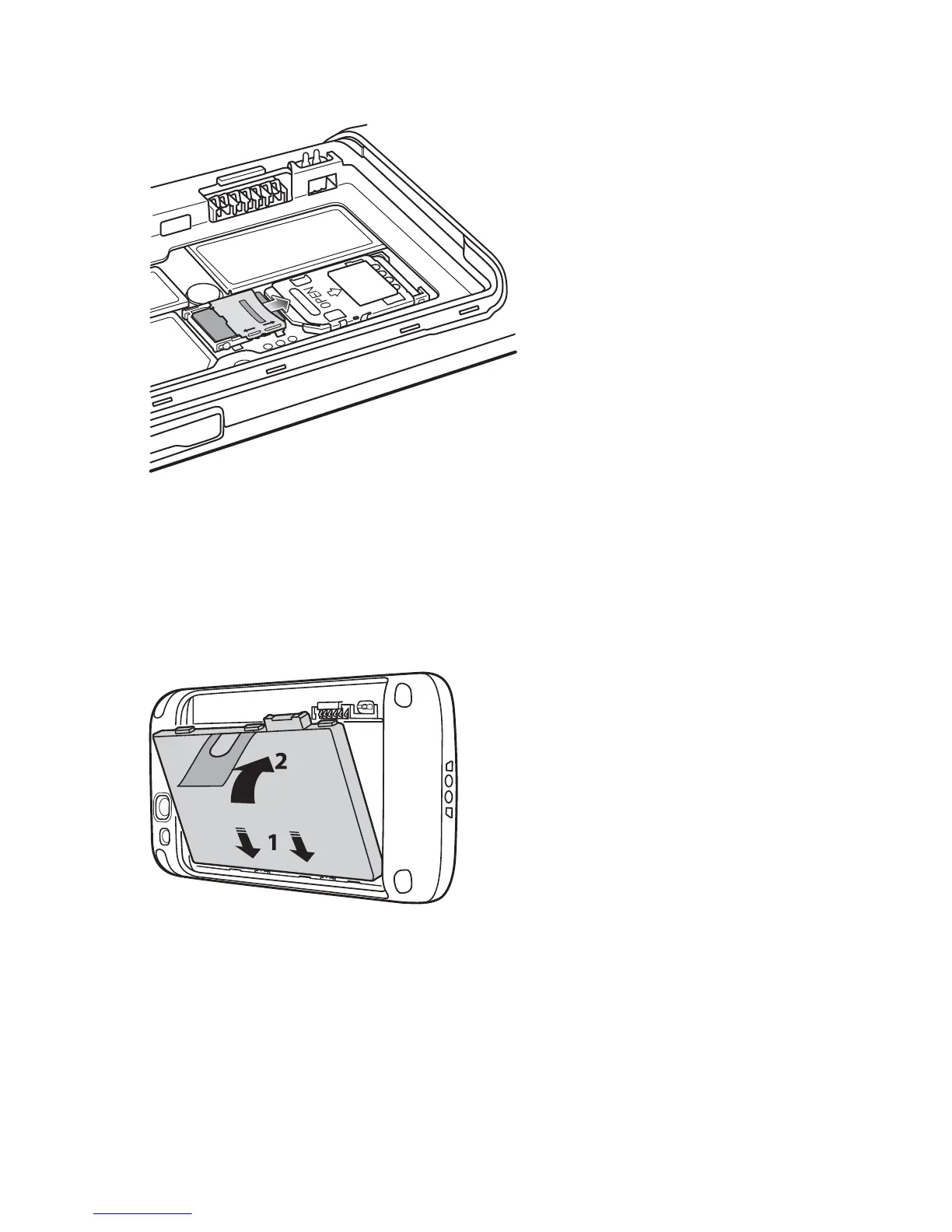

Figure 8: Lock SD Card Door
OPEN
LOCK
Installing the Battery
There are two sizes of batteries available for the TC55; a 2,940 mAh battery and a 4,410 mAh battery.
Procedure:
1 Align the three tabs on the bottom of the battery with the three slots in the battery compartment.
2 Press the battery down and then rotate until it locks into place.
Figure 9: Inserting the 2,940 mAh Battery
