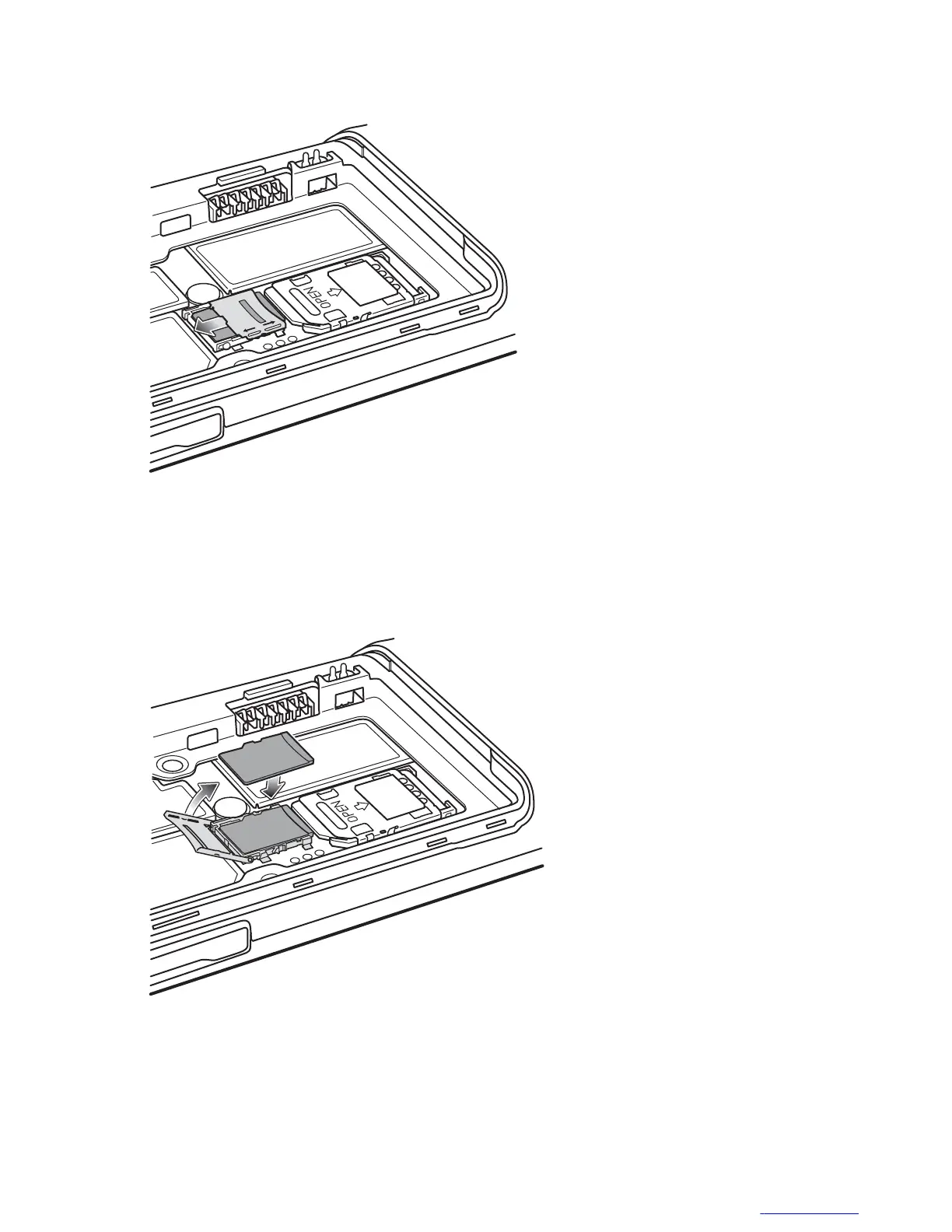

Figure 24: Unlock microSD Card Door
8 Lift the microSD card door.
9 Remove the microSD card from the card holder.
10 Align the replacement microSD card with the card holder. Ensure that the contacts on the card are facing down
and toward the card holder.
11 Insert the microSD card into the card holder.
Figure 25: Insert microSD Card
12 Close the microSD card door.
13 Slide the microSD card door down to lock into place.
Getting Started | 35
MN000017A01 | October 2013 | Send Feedback
