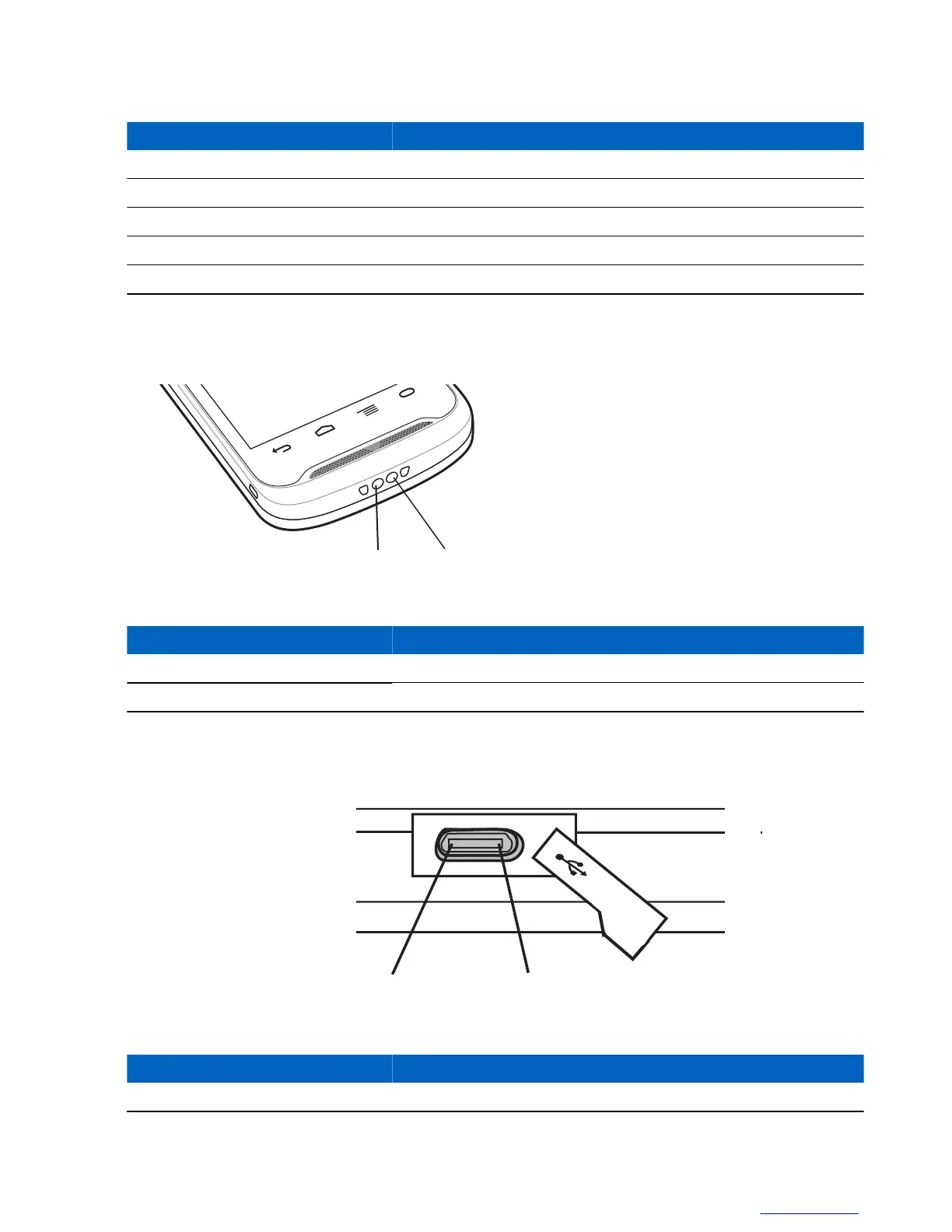

Motorola TC55 Integrator Guide

Table 8: Headset Connector Pin-Outs
Signal name Description
MIC Microphone positive
SPKR Speaker (mono)
SPKR (R) Right Speaker
SPKR (L) Left Speaker
GND Ground
Power Connector
Figure 80: Power Connector
12
Table 9: Power Connector Pin-Outs
Pin Description
1 +5 VDC input power.
2
Ground
USB Connector
Figure 81: micro-B USB Connector
Pin 1
Pin 5
Table 10: micro-B USB Connector Pin-Outs
Pin Description
1 +5 VDC
Table continued…
