Motorola TC55 - Figure 15: Remove 2,940 Mah Battery; Figure 16: Inserting the 2,940 Mah Battery; Figure 17: Align the Battery Cover

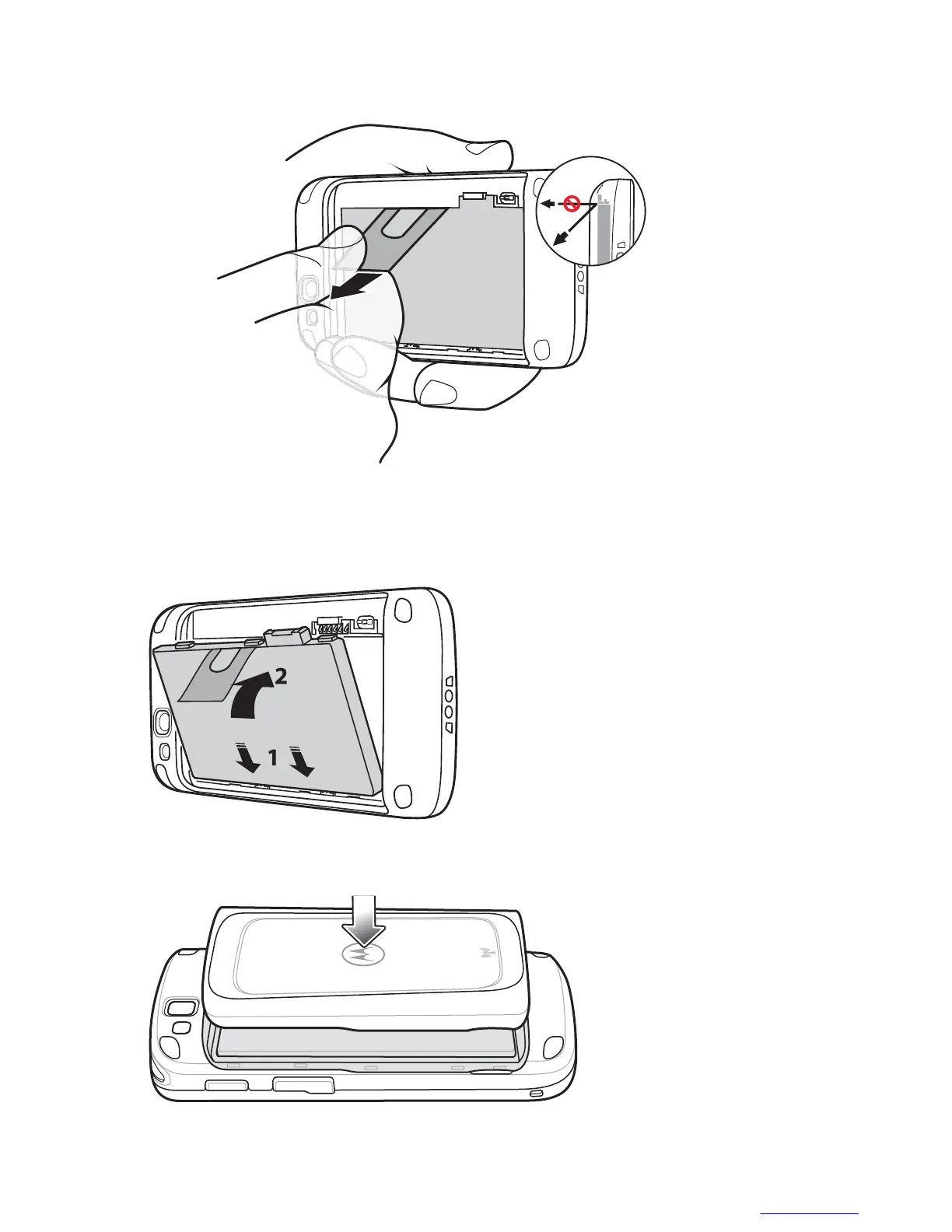

Figure 15: Remove 2,940 mAh Battery
6 Remove the battery from the battery compartment.
7 Align the three tabs on the bottom of the replacement battery with the three slots in the battery compartment.
8 Press the battery down and rotate until it locks into place.
Figure 16: Inserting the 2,940 mAh Battery
9 Align the battery door with the back of the device.
Figure 17: Align the Battery Cover
10 Press around the edge of the cover to ensure that the battery door is seated properly.
