Power Setup

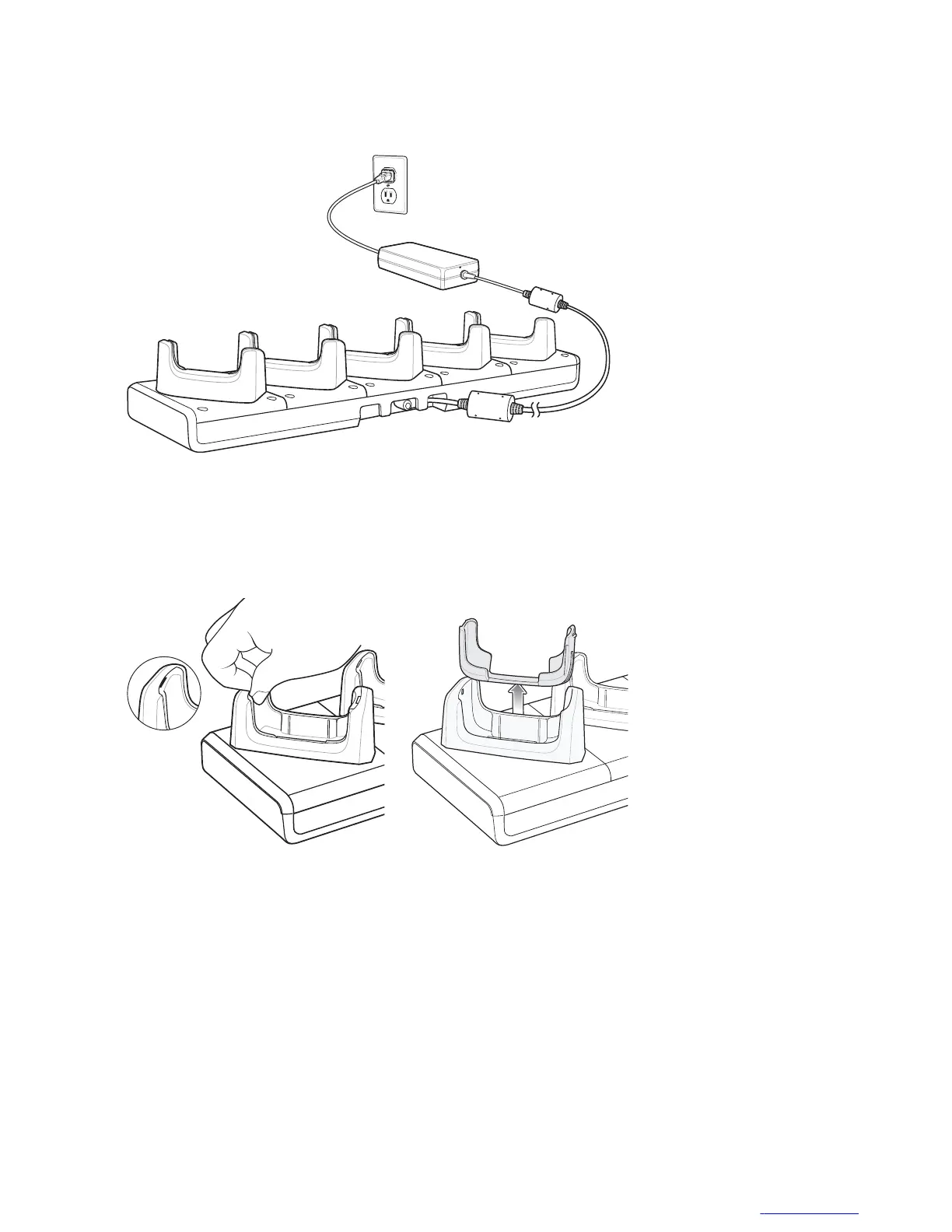

Figure 31: Five Slot Charge Only Cradle Power Connections
Inserting a TC55 with Boot into Cradle
Each cradle cup has an insert that must be removed prior to inserting the TC55 with Protective Boot. Remove the
insert and then insert the TC55 into the cup.
Figure 32: Remove Cup Insert
Installing a Cup
Cups on the Five Slot Charge Only Cradle can be removed and replaced with new cups or blank cups. To install the
cradle cups:
Procedure:
1 Remove power from the cradle base before installing cups.
2 Using a Phillips screwdriver, remove the two screws securing the cup to the base.
3 Lift the front of the cup and then slide off the back of the base.
4 Align the lip of the cup with the slot on the front of the cradle. Ensure that the cup is positioned within the Slot
Alignment Tabs.
Accessories | 41
MN000017A01 | October 2013 | Send Feedback
