TRANSMISSION
Ch 2 page 108 Ch 2 page 109
TRANSMISSION
TRANSMISSION
Ch 2 page 108 Ch 2 page 109
TRANSMISSION

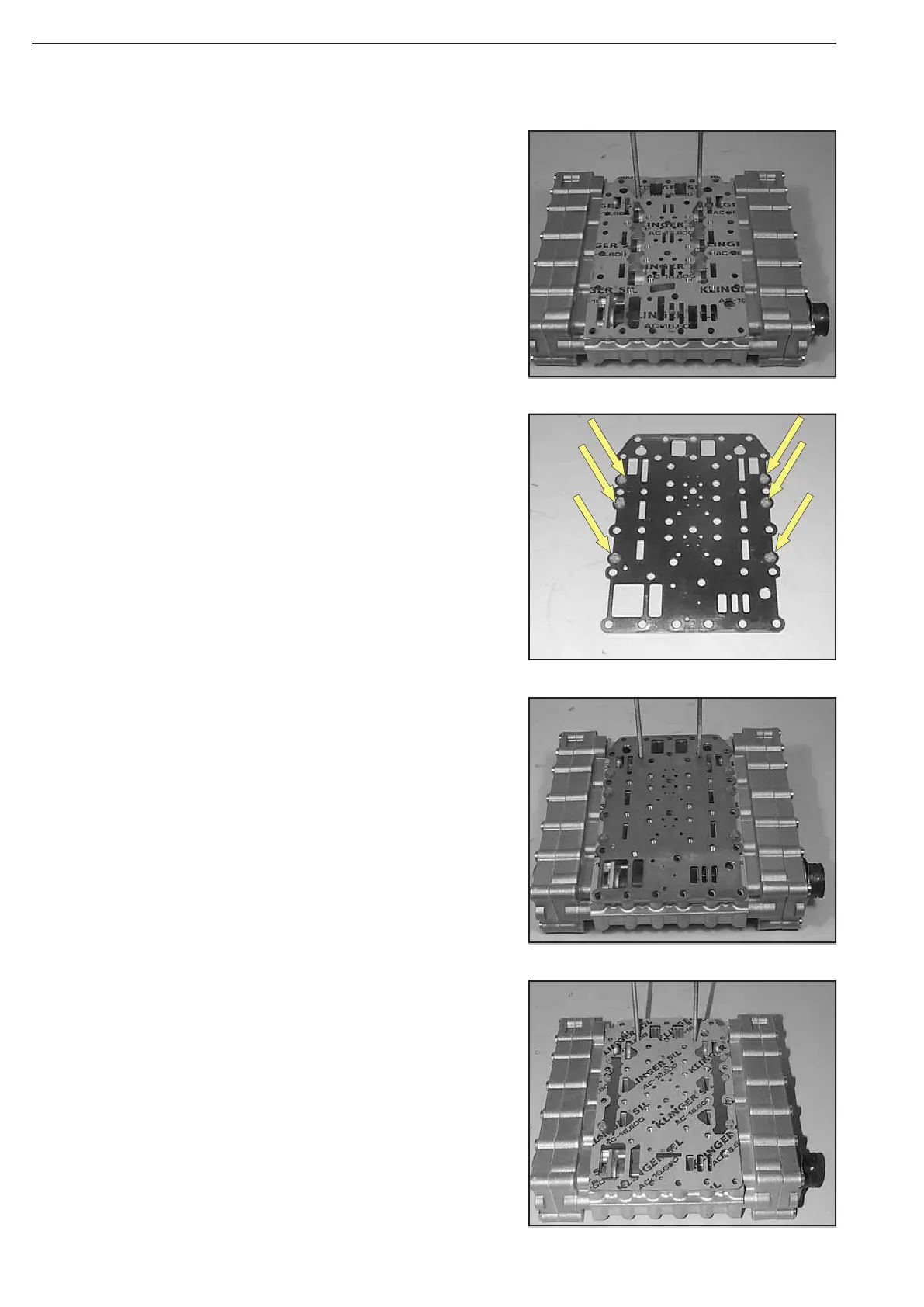

Install two adjusting screws and mount gasket I.
Pay attention to the different gaskets, see Figure 27 and 30 !
(S) Adjusting screws M6 504189
Mount gasket II.
Mount intermediate with the strainers showing upward.
Intermediate plate – Version with strainers:
Insert strainers (6x) flush-mounted into the bores of the inter-
mediate plate, see Arrows !
Pay attention to the installation position – strainers are showing
upward (facing the duct plate) !
Figure 27
Figure 30
Figure 29
Figure 28
