TRANSMISSION
Ch 2 page 108 Ch 2 page 109
TRANSMISSION
TRANSMISSION
Ch 2 page 108 Ch 2 page 109
TRANSMISSION

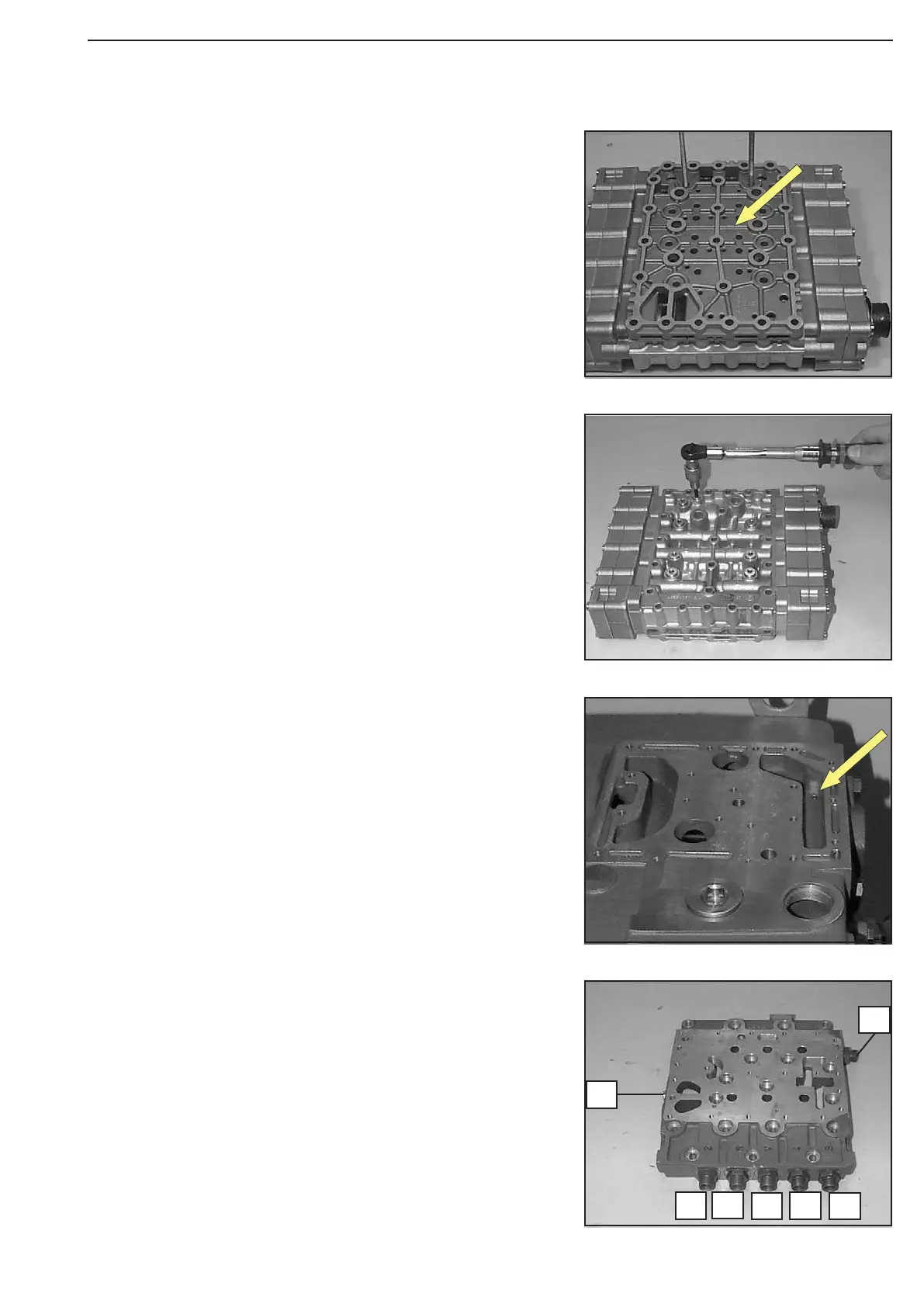

Mount duct plate (Arrow) and fasten it uniformly by means of
socket head screws.
Torque limit ...................................... 11 Nm
(S) Box spanner TX-27 504253
Install connecting fittings 1 ... 6.
Install screw plugs 7.
Torque limit Connecting fittings................. Nm
Torque limit Screw plugs (M10x1) ............. 6 Nm
Install always new O-rings !
Attach Hydraulic control unit (HSG-94) (Figure 33 ... 40)
Screw orifice into the housing bore (Arrow) and secure it by
means of center punch !
Equip screw plugs (8x) with new O-rings and install them.
Torque limit ......................................... 6 Nm
Figure 31
Figure 34
Figure 33
Figure 32
1
3
4
2
5
6
7
