TRANSMISSION
Ch 2 page 110 Ch 2 page 111
TRANSMISSION
TRANSMISSION
Ch 2 page 110 Ch 2 page 111
TRANSMISSION
Figure 35
Figure 38
Figure 37
Figure 36

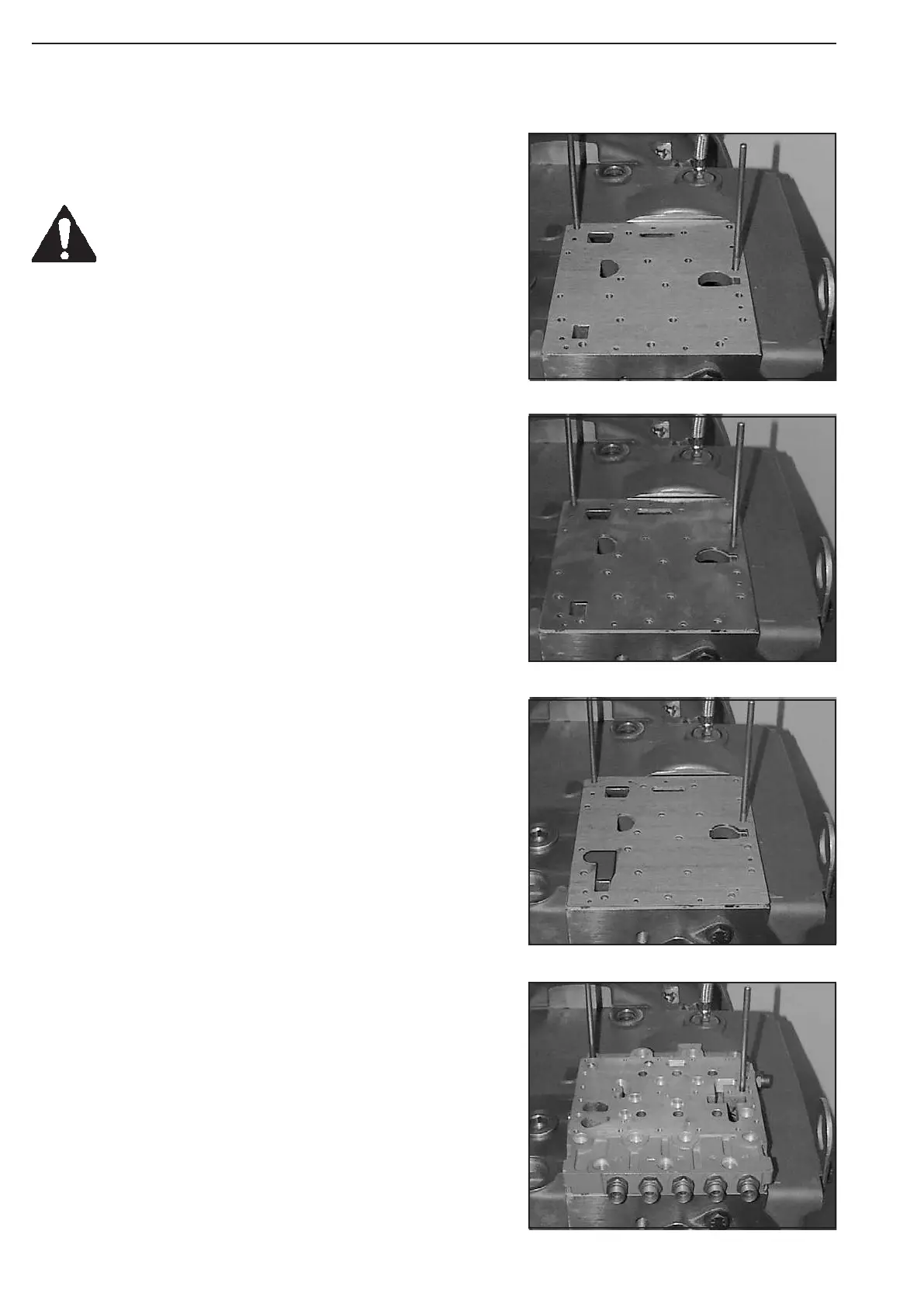

Install two adjusting screws (M8) and mount housing gasket.
At the following steps (Figure 35 ... 39), pay
attention to the installation positions of the
different gaskets !
(S) Adjusting screws M8 504185
Mount plate and fasten it uniformly by means of socket head
screws.
Torque limit (M8/10.9) ........................ 23 Nm
(S) Box spanner TX-40 504254
Mount 2
nd
gasket.
Mount intermediate plate.
To Next Page
