TRANSMISSION
Ch 2 page 122 Ch 2 page 123
TRANSMISSION
TRANSMISSION
Ch 2 page 122 Ch 2 page 123
TRANSMISSION

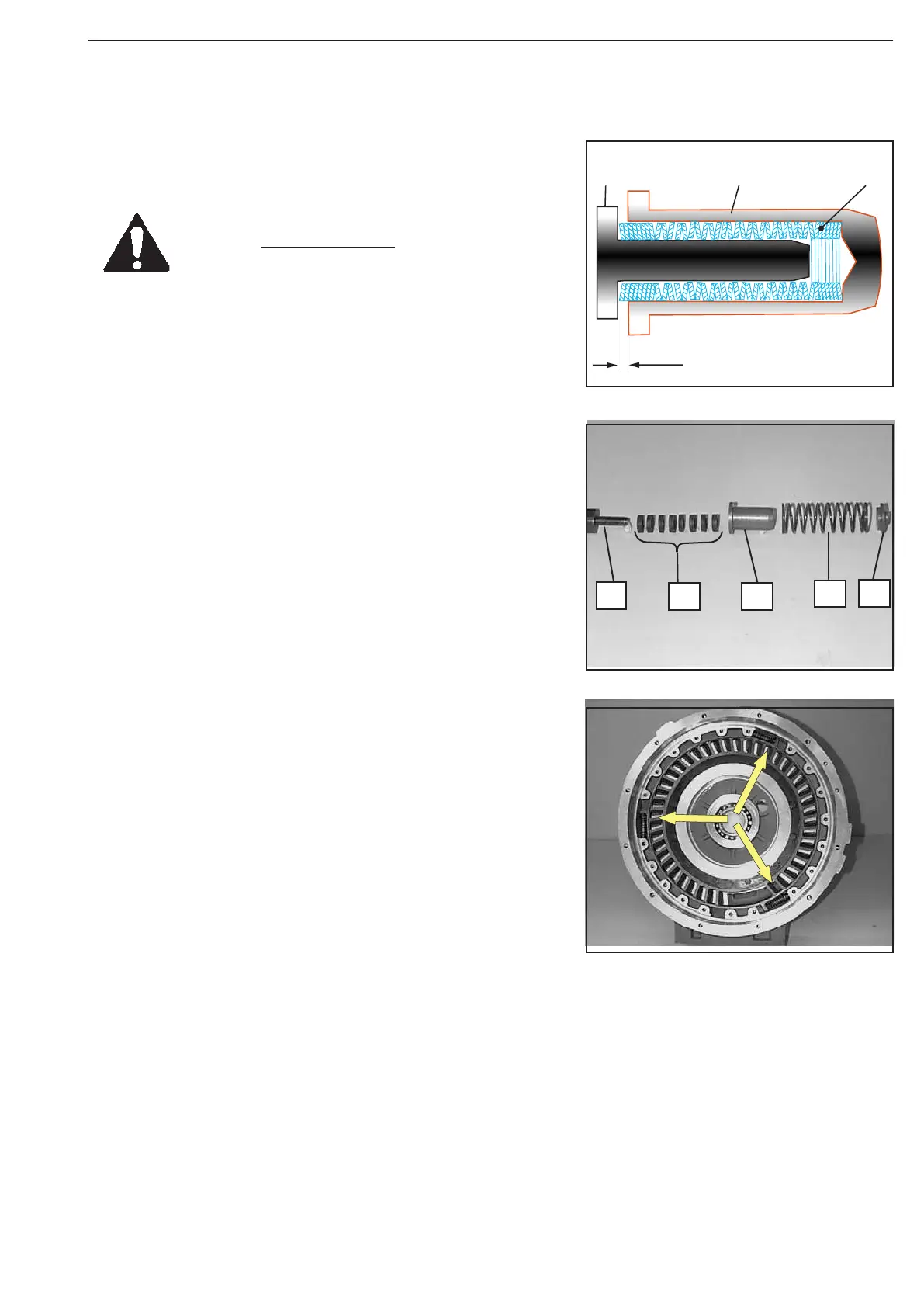

Figure 74
Figure 76
Figure 75
Pre-assemble dampers (3 pieces) according to Figure 25 and
Figure 26.
The Installation dimension B = 1,6
+ 0,5
mm results
from the alternating stacking of the cup spring
packs (8 packs with 6 cup springs each) !
Install the pre-assembled dampers, see Arrows.
Ref. Figure 74 and 75:
1 = Guide pin
2 = Cup spring packs (8 packs with 6 cup springs
each)
3 = Spring guide
4 = Compression spring
5 = Spring guide
1
3
4
2
5
