TRANSMISSION
Ch 2 page 124 Ch 2 page 125
TRANSMISSION
TRANSMISSION
Ch 2 page 124 Ch 2 page 125
TRANSMISSION

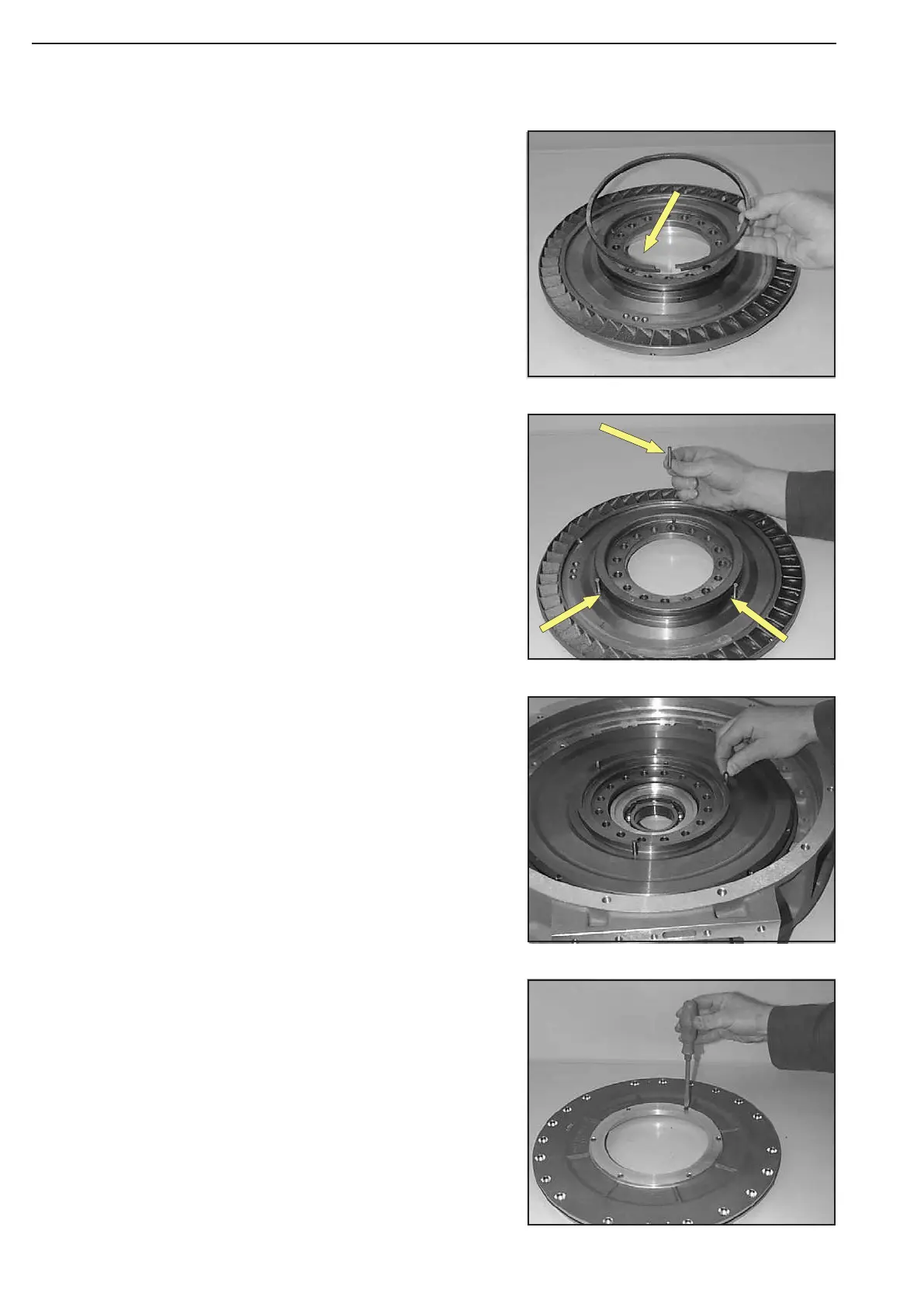

Figure 77
Figure 80
Figure 79
Figure 78
Introduce rectangular ring into the recess of the rotor (Figure
77) and preload it by means of cylindrical pins Æ 6 mm (as-
sembly aid), see Figure 78 !
Install rectangular ring with the marking „Top“ see Arrow, show
-
ing upward (to the prime mover) !
Grease rectangular ring.
Introduce rotor into the stator housing until contact is
obtained and remove cylindical pins again.
Grease rectangular ring.
Introduce rotor into the stator housing until contact is obtained
and remove cylindical pins again.
