TRANSMISSION
Ch 2 page 124 Ch 2 page 125
TRANSMISSION
TRANSMISSION
Ch 2 page 124 Ch 2 page 125
TRANSMISSION
Figure 81
Figure 84
Figure 83
Figure 82

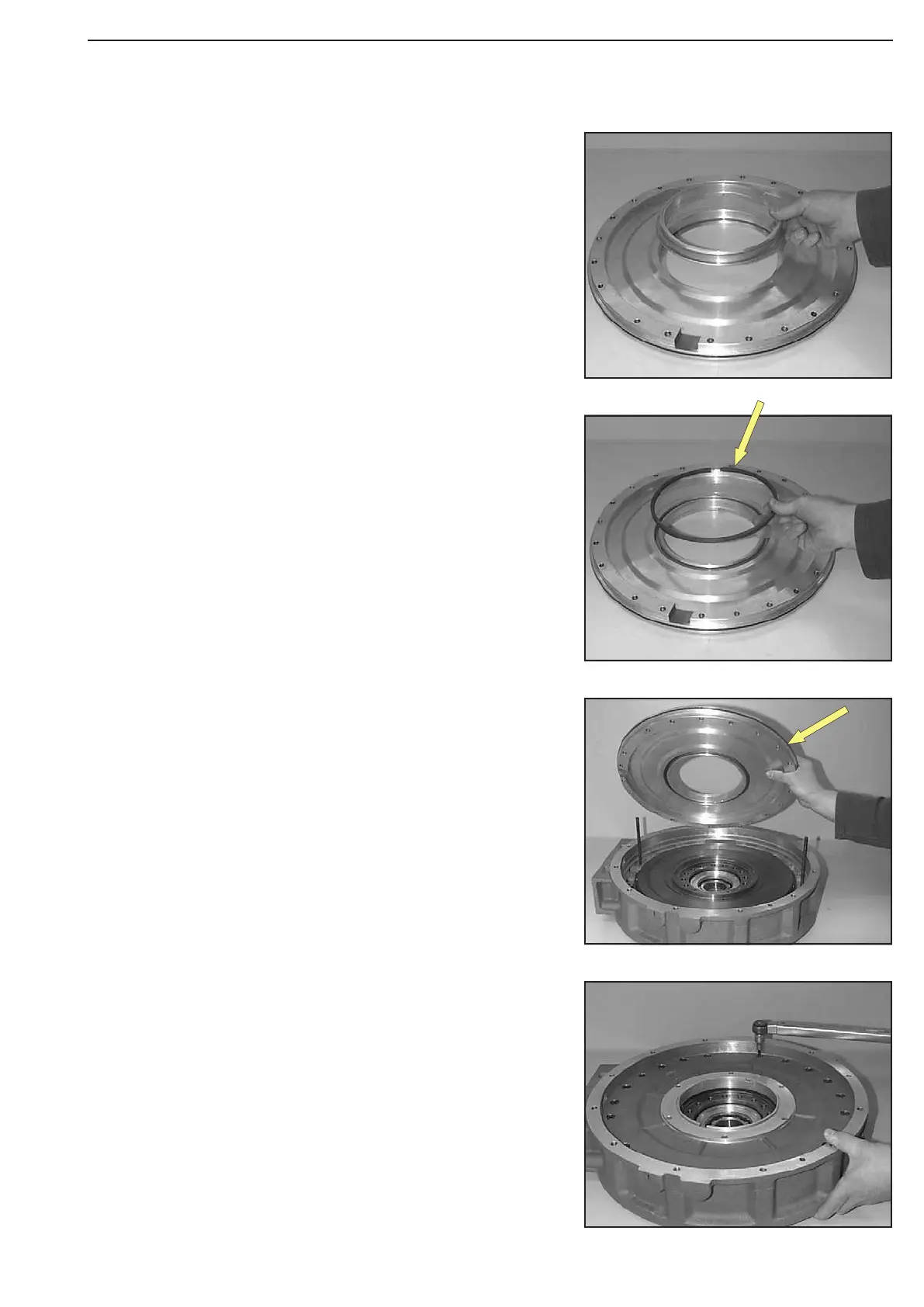

Insert ring into the cover, with the oil grooves showing down
-
ward.
Fasten cover finally by means of socket head screws (install flat
washers).
Secure socket head screws with Loctite (Type-No. 243) !
Torque limit (M8/10.9) ............................ 23 Nm
Insert O-ring into the annular groove of the cover (Arrow) and
grease it.
Install two adjusting screws and pull cover uniformly against
shoulder, using 3 socket head screws.
Pay attention to the radial installation position !
(S) Adjusting screws M8 504185
Introduce rectangular ring.
Install rectangular ring with the marking „Top“ see Arrow, show-
ing upward (to the prime mov er) !
