TRANSMISSION
Ch 2 page 142 Ch 2 page 143
TRANSMISSION
TRANSMISSION
Ch 2 page 142 Ch 2 page 143
TRANSMISSION

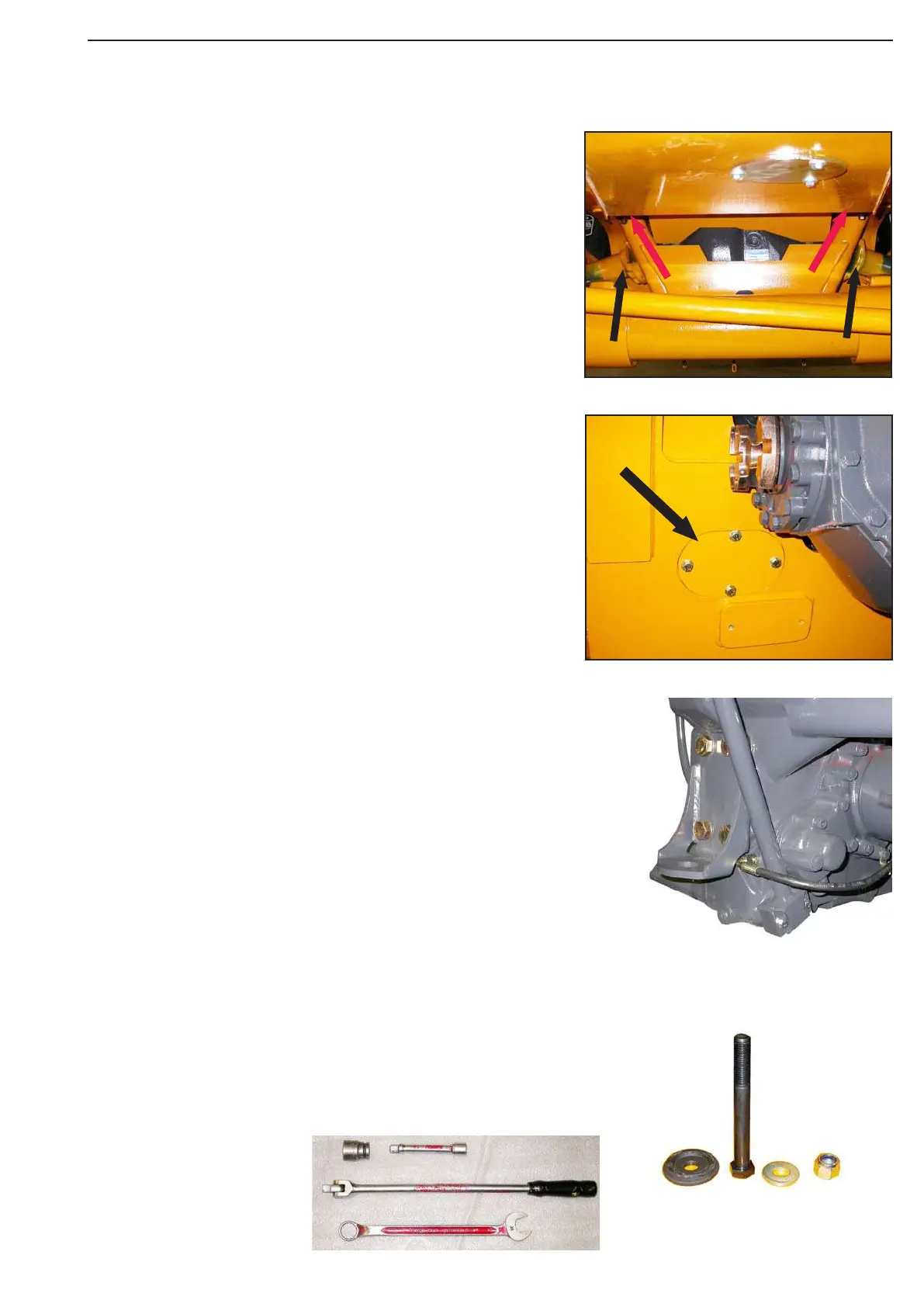

Dismount the protection guard for the diff and both front axle
propeller shaft at differential side.
From machine 810013 are screws for the propeller shaft changed
to UNF thread on outer and inner sides:
• When assembling, use Loctite 262 or ThreeBond
medium 1374 on thread.
• Tightening torque (
1
/
2
” x 2
1
/
4
” -10.9 UNF): 120 Nm.
Remove from the rear bottom guard the inspection cover plate
(arrow).
Disassemble the lower rear transmission attach-
ment.
If shim are assembled, use the shims at the same
place when assemblying.
Hold with combonation wrench 36 mm and from
the lower side, trough the opening the bottom
guard use standard tool as shown at the picture.
Assembly:
Torque limit: 960 Nm
Pipe 36 mm ¾#
Extension L= 4”
Arm with ¾#
Combination
wrench 36 mm
