TRANSMISSION
Ch 2 page 232 Ch 2 page 233
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 232 Ch 2 page 233
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
Figure 380
Figure 383
Figure 382
Figure 381

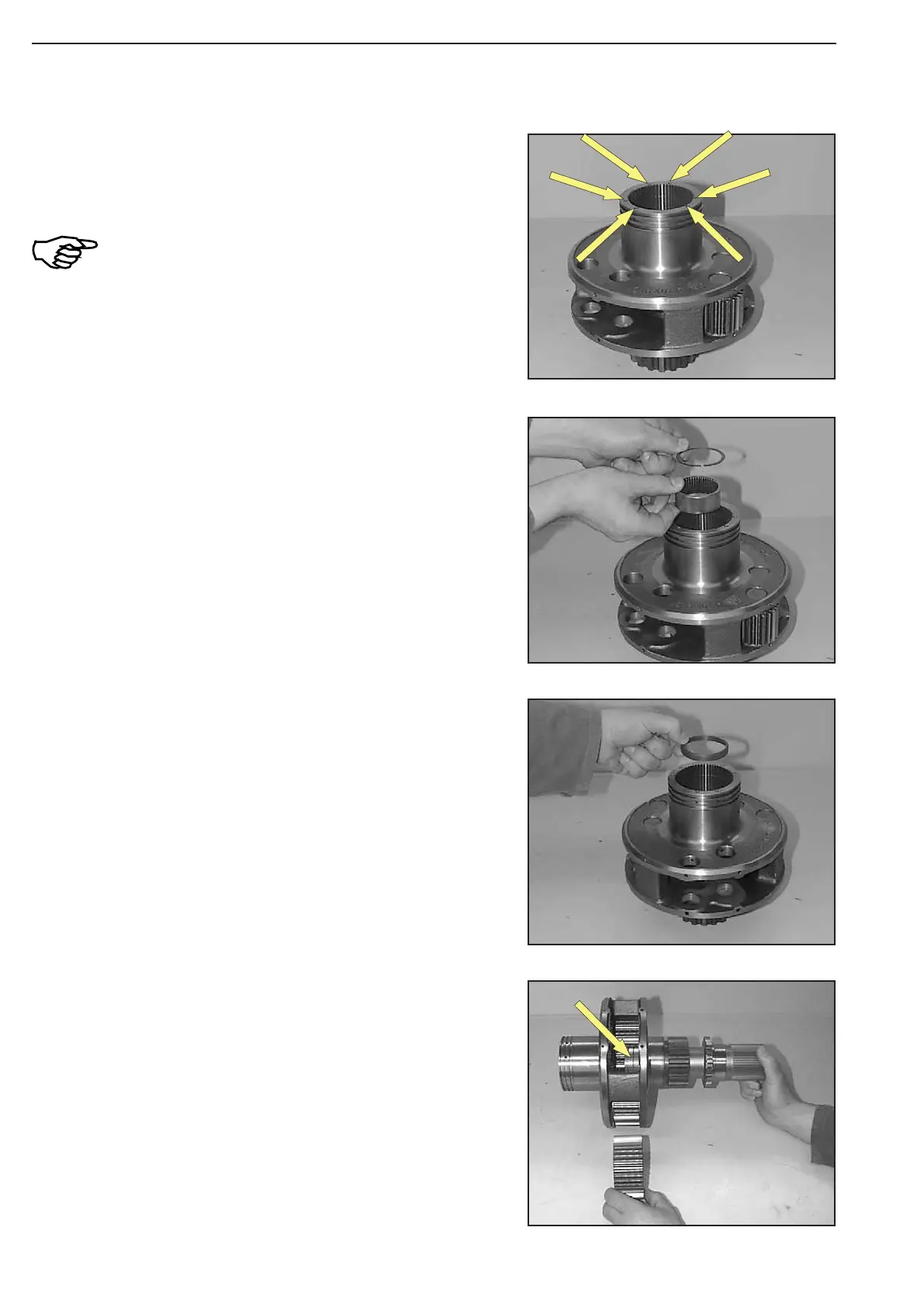

Close bores (6x , arrows) by means of set screws.
Insert set screws with Loctite (type-no. 243)!
Introduce output shaft and install snap ring (arrow).
Position sun gear with the stepped plane surface facing the snap
ring and introduce output shaft until the snap ring snaps into posi-
tion.
Press ring in with the great Æ showing downwards until contact is
obtained.
Press needle sleeve with the reinforced lining facing the pressing-
in tool until contact is obtained and fix it by means of snap ring.
(S) Pressing-in sleeve 504222
