TRANSMISSION
Ch 2 page 232 Ch 2 page 233
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 232 Ch 2 page 233
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

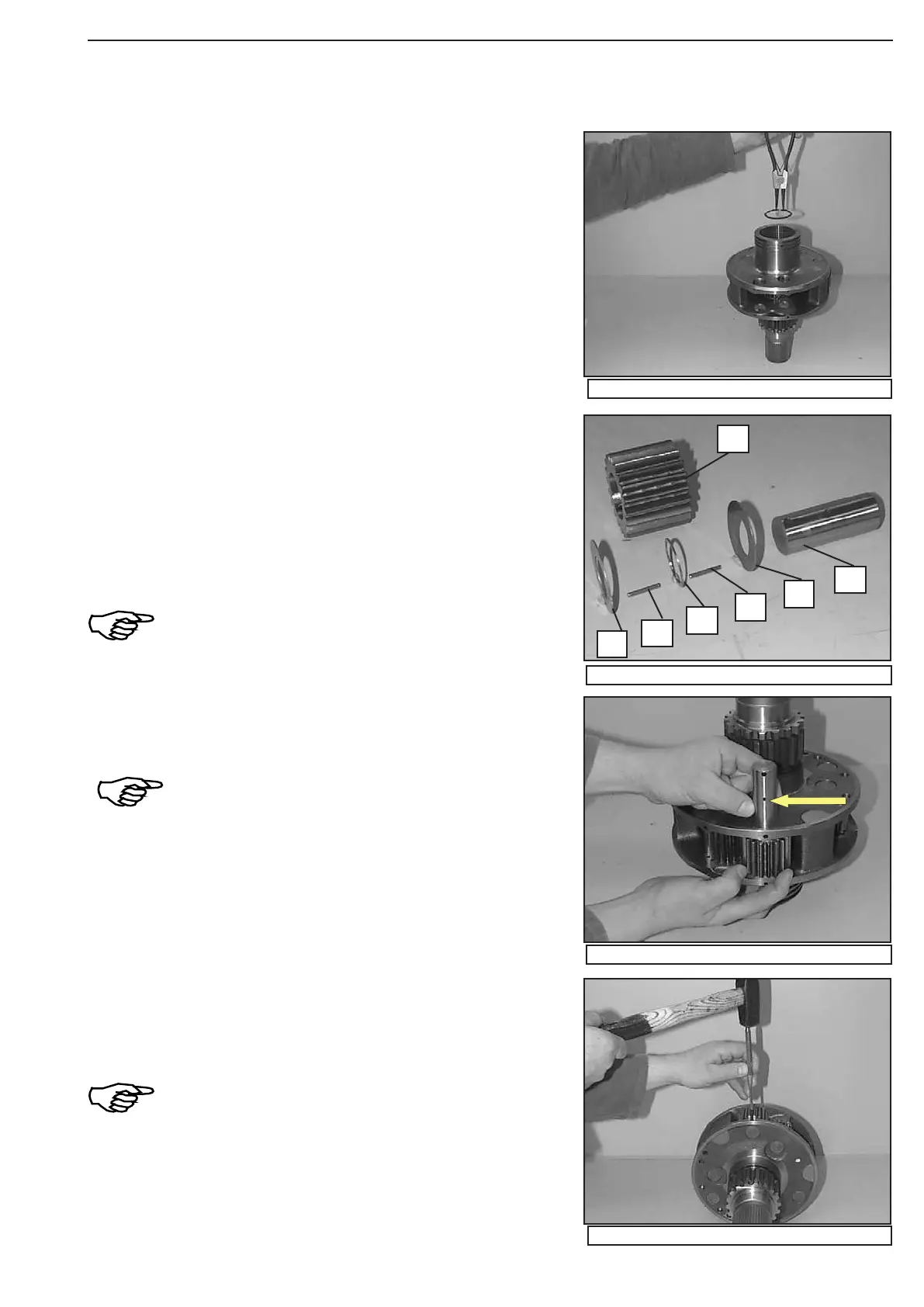

Fix sun gear by means of circlip.
Fix planetary shaft by means of roll pin.
Accordingly install remaining planetary gears.
Drive in roll pins up to the shaft center, see
arrow!
Position planetary gear, centrically align and fix it by means of
planetary shaft.
Observe the installation position of the
planetary shaft – central oil bore (arrow)
showing ahead!
The figure on the left show the components of the planetary
gear.
1 = Thrust washer
2 = Needle rollers ( 30 units)
3 = Disc
4 = Planetary shaft
5 = Planetary gear
Install components 1 to 3.
As assembly aid, use grease!
Renew needle rolls only by sets!
Figure 384
Figure 387
Figure 386
Figure 385
1
3
4
5
1
2
2
