TRANSMISSION
Ch 2 page 234 Ch 2 page 235
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 234 Ch 2 page 235
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

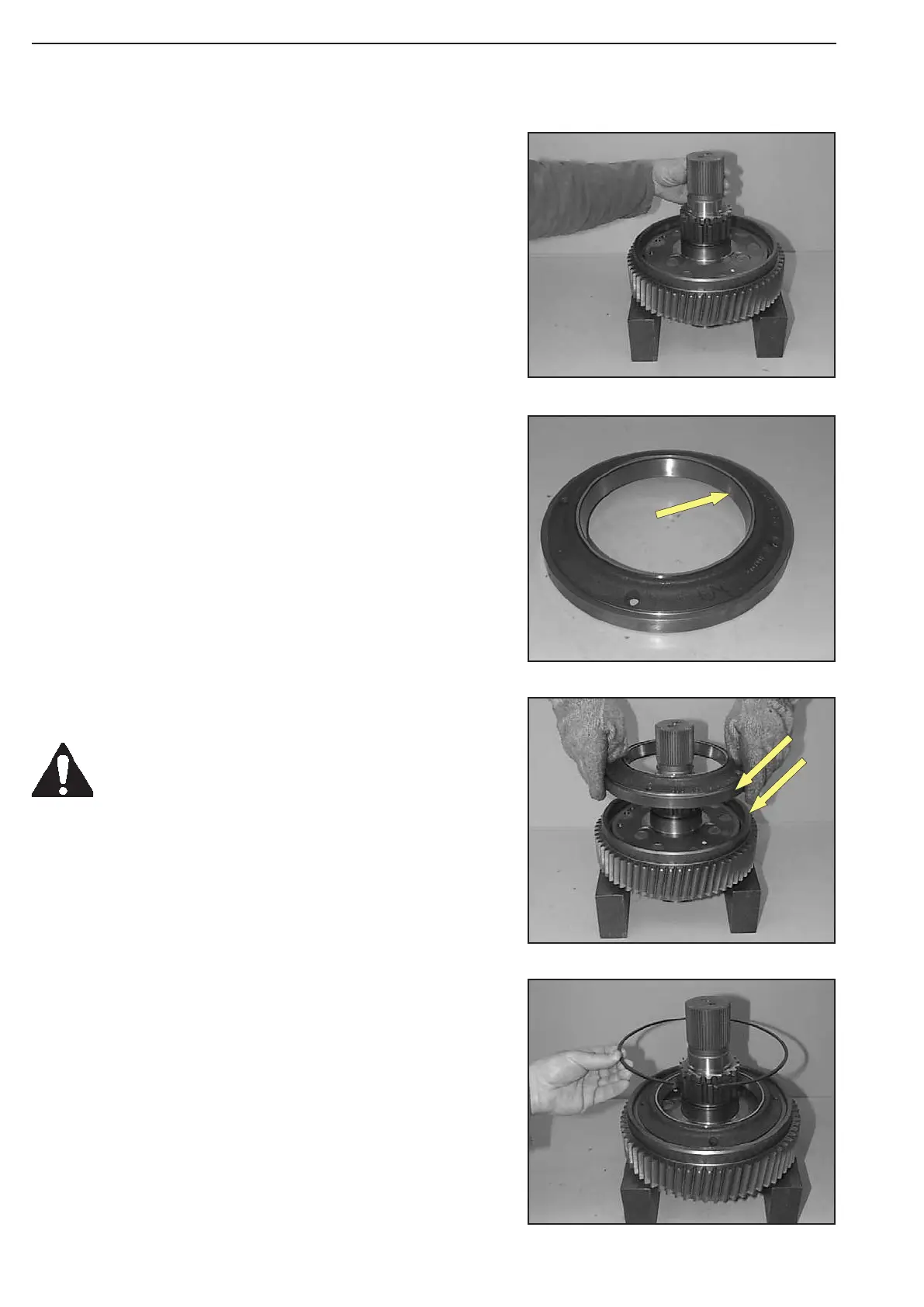

Figure 388
Figure 391
Figure 390
Figure 389
Insert planet carrier into the internal gear.
Fix internal gear carrier by means of snap ring.
Supercool internal gear until contact is obtained.
Use protective gloves!
Insert bearing outer race (arrow) into the internal gear carrier until
contact is obtained.
