TRANSMISSION
Ch 2 page 238 Ch 2 page 239
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 238 Ch 2 page 239
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

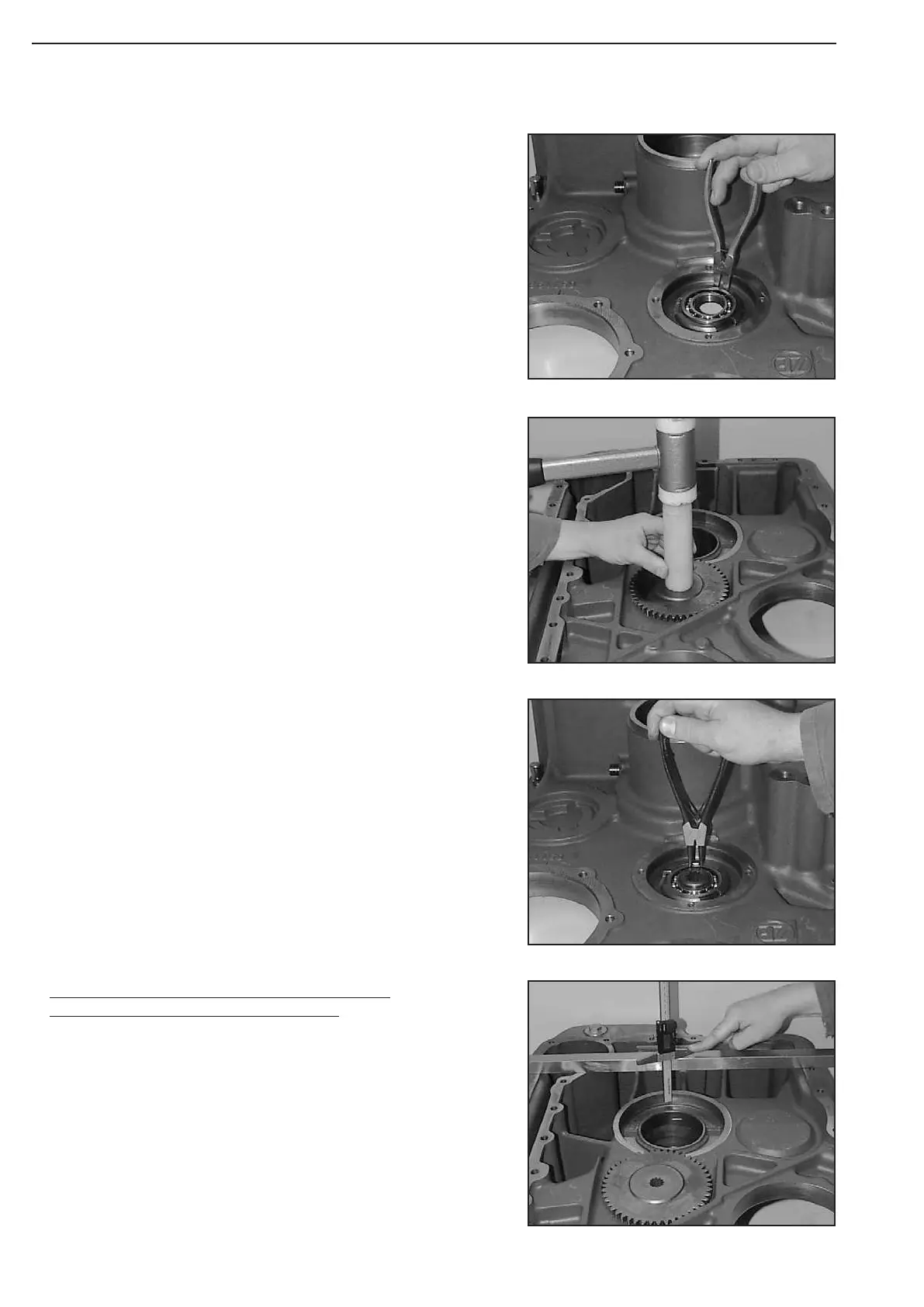

Figure 404
Figure 407
Figure 406
Figure 405
Expand the two snap rings.
Introduce ball bearing with the annular groove showing upwards
until the upper snap ring is engaged in the groove of the ball bear-
ing.
(S) Clamping pliers 504730
Adjust bearing pre-load of differential bearing
0,0 ... 0,1 mm (Figure 407 ... 409):
Determine measure I, from the mounting face to the locating face
of the bearing outer race.
Measure I e.g.. ........................................ 66,36 mm
Fix gear wheel by means of circlip.
(S) Set of external pliers 504231
Insert gear wheel until contact is obtained.
(S) Mallet 504196
