4.2.3 Pre-assemble and install Flange shaft

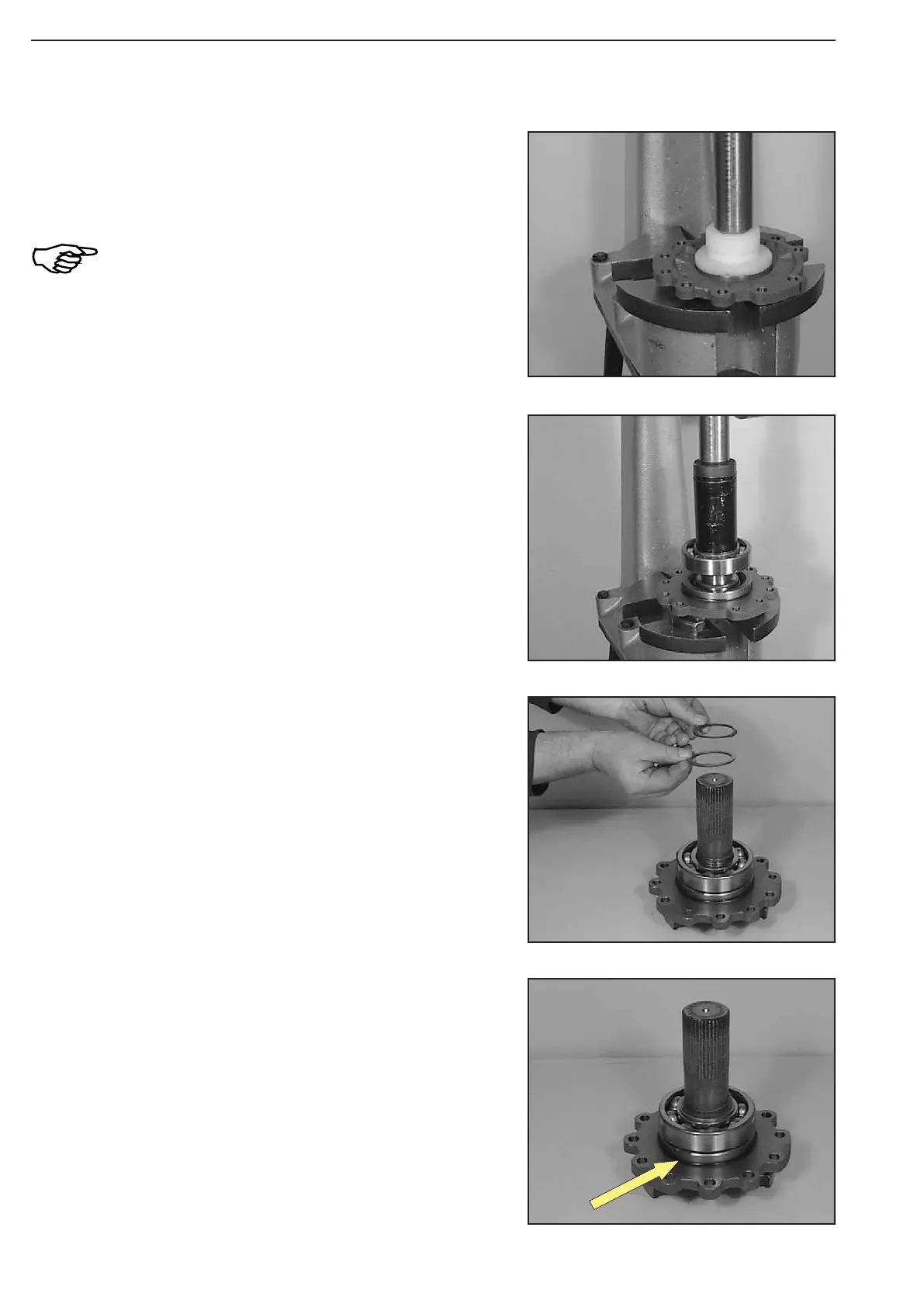

Lay seal retainer upon a plane base.
Press shaft seal in, with the sealing lip facing the oil chamber.
Wet outer diameter with spirit !
Grease sealing lip !
At application of the prescribed Special tool
(S), the exact installation position is obtained!
(S) Driver 504164
Install O-ring (Arrow).
Adjust the ball bearing playfree, using shim and circlip.
(S) Set of external pliers 504231
Line up seal retainer and press ball bearing against shoulder.
