SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 308 Ch 2 page 309
TRANSMISSION
TRANSMISSION
Ch 2 page 308 Ch 2 page 309
TRANSMISSION
246
234
Tr
ans-
mission
side
Engine
side

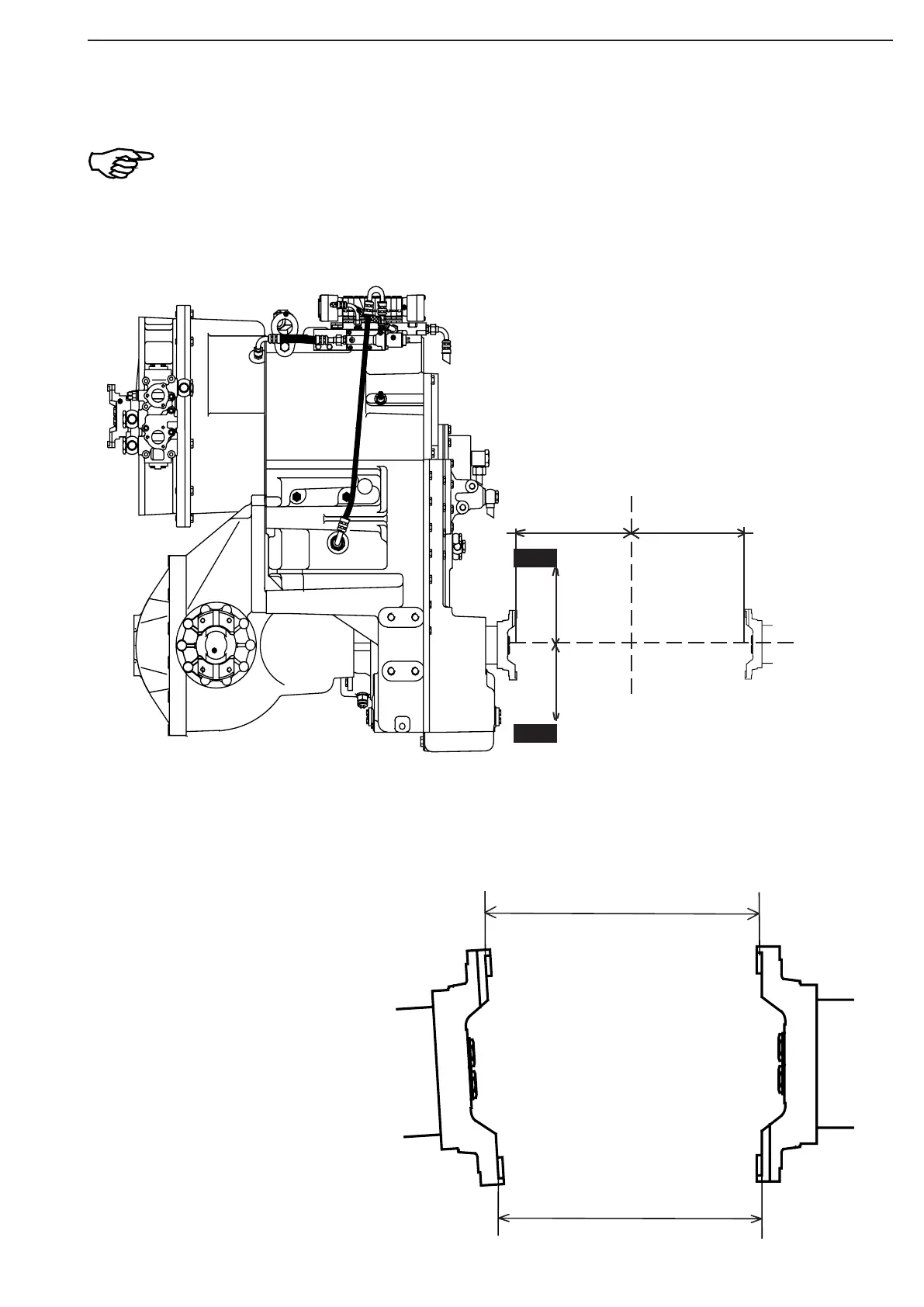

When the Engine and the Transmis-
sion is in correct position, please
control the distance between the
flanges.
At the top, the distance between the
flanges shaft be of minimum 246
mm - to max 256 mm.
At the lower side the distanse shall
be 12 mm less. That is when the
Engine is in the correct position
and the angle is 3,5°
See figure 646.
Use shims to get the correct position for the rear flange.
The flange shall be vertical accordingly to the plane and center of the articulated bearing. The
cardan joint in articulated hinge, shall have the same distance from center to both end of the
axle.
See figure 642 / 644 / 645.
Center hinge
=
=
==
Center
Shaft
Figure 645
Figure 646
To Next Page
