SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 310 Ch 2 page PB
TRANSMISSION
Trans-
mission
side
Engine
side
037002
037002
3,5
1,3
0,7
Engine
Gear
If correction is necessery, following shim are avaliable:
Shims for the rear Transmission bracket: Part No: 502327 (1,25mm)
502328 (2.00mm)
Shims for the front Transmission bracket: Part No: 140063 (1,25mm)
140062 (2,00mm)
Shims for the Engine brackets rear: Part No: 140063 (1,25mm)
140062 (2,00mm)
Shims for the Engine brackets front: Part No: 509580 (0,50mm)
509550 (1,25mm)
Use locking liquid at the screws and tighten with correct moment.
Finally check the measurement for the axle.
When assembling, brackets use
Loctite 262 or ThreeBond medium 1374 on thread.

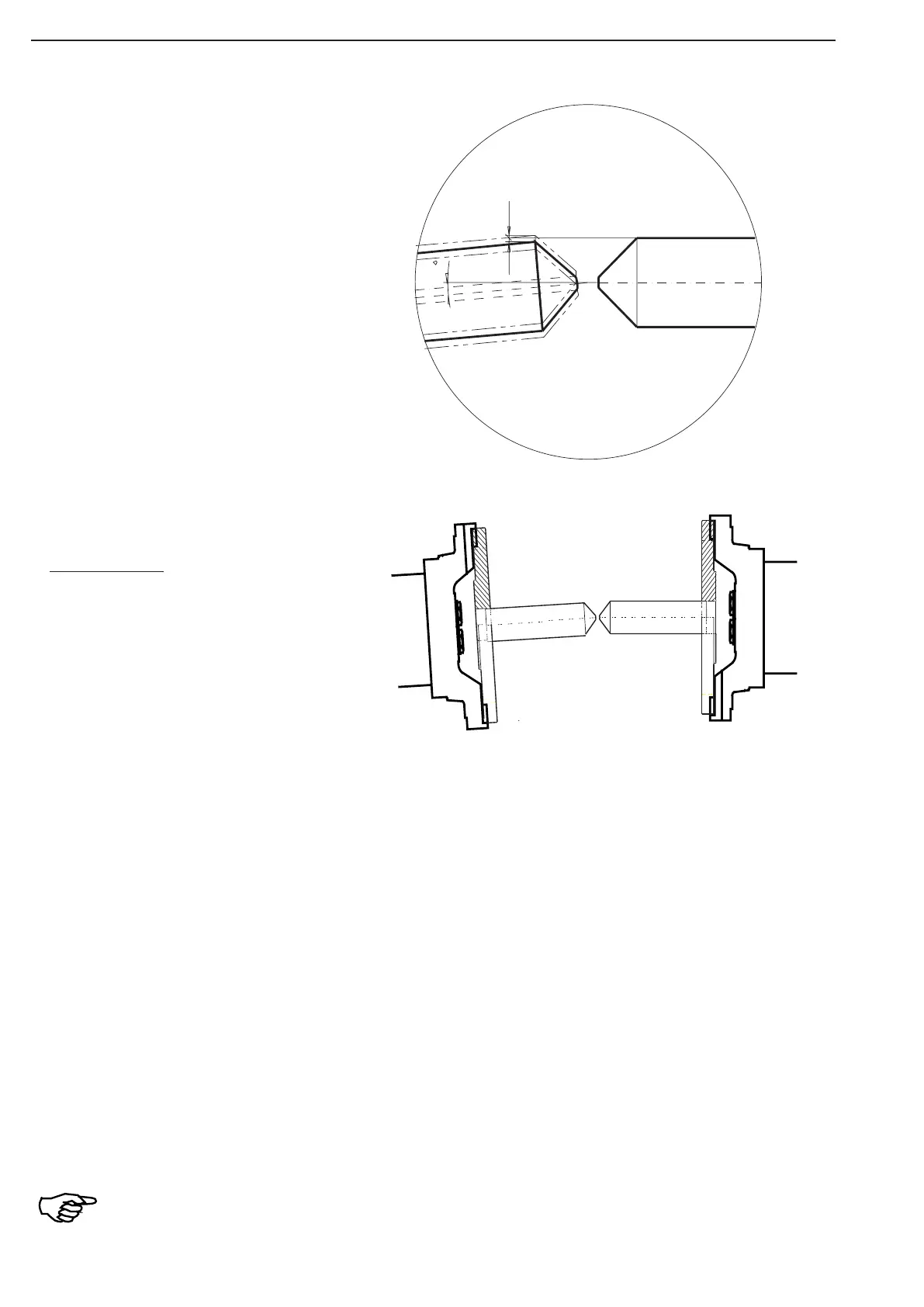

Figure 647
Use 2 tools No:037002 for
position control of the flange.
It is very important for the cardan
axle lifetime that it is correct.
The valid tolerance at the engine side
tool is: + 0,7 - ÷ 1,3 mm.
See figure 647 !
