DRIVE LINE
CH 3 PAGE 4
SHOP MANUAL MT26/31 - 12.2004SHOP MANUAL MT26/31 - 12.2004
The Front Wheel Hub Reduction Drive has a planetary drive, reducing axle
speed, increasing torque to each front wheel.
Disassembly
Remove front axle drive assembly (Ref. 3.2.1)
Release the four bolts connecting the reduction gear to the drive shaft.
Assembly
Connect the reduction gear to the drive shaft and tighten the four bolts.
Replace front axle drive assembly (Ref. 3.2.1)
Control
Perform control as when replacing front axle drive assembly (Ref. 3.2.1)
Front Wheel Reduction
Drive

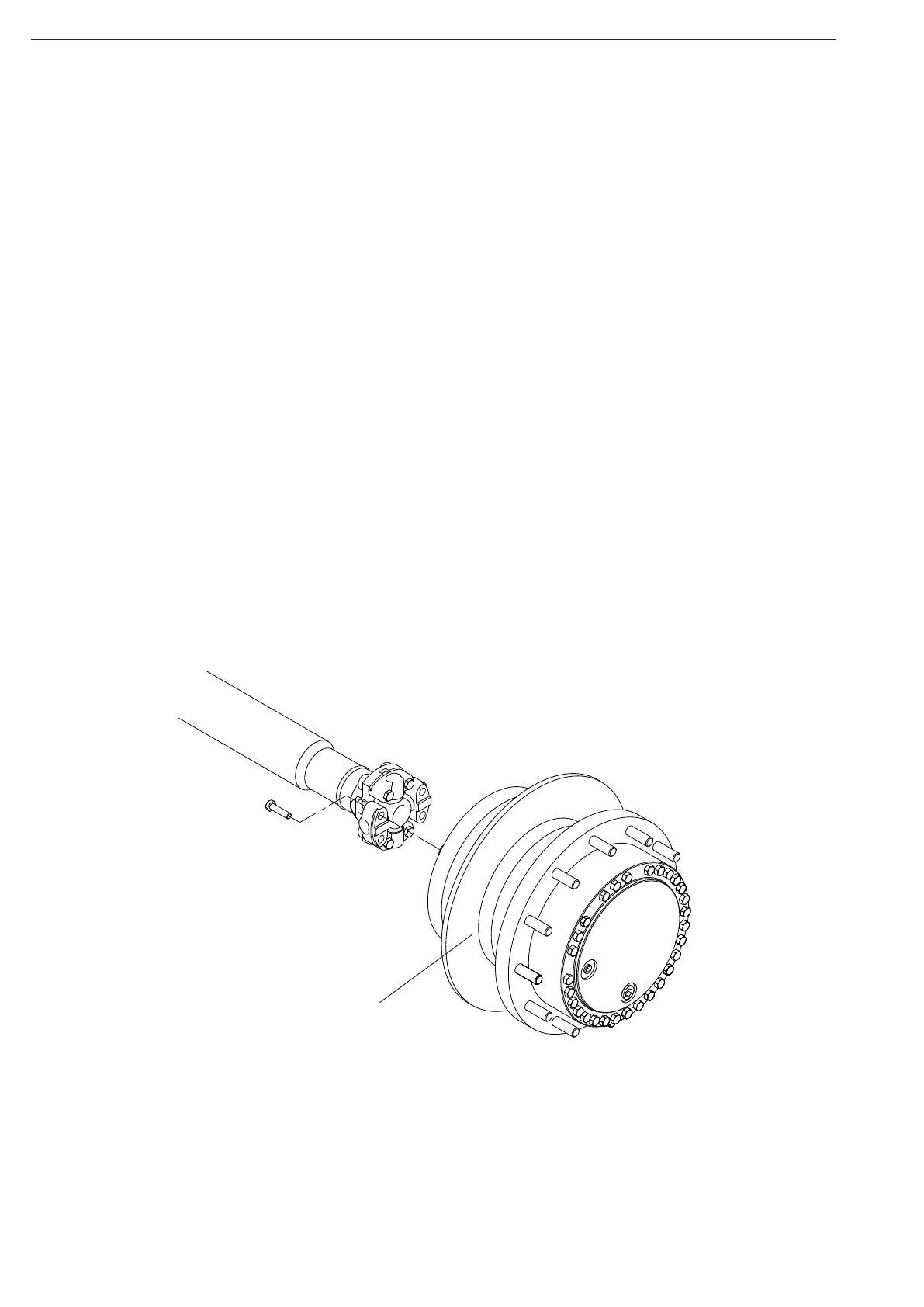

Fig 3.3 Front Wheel Hub Reduction Drive
3.2.2 Front Wheel Hub Reduction Drive
