DRIVE LINE

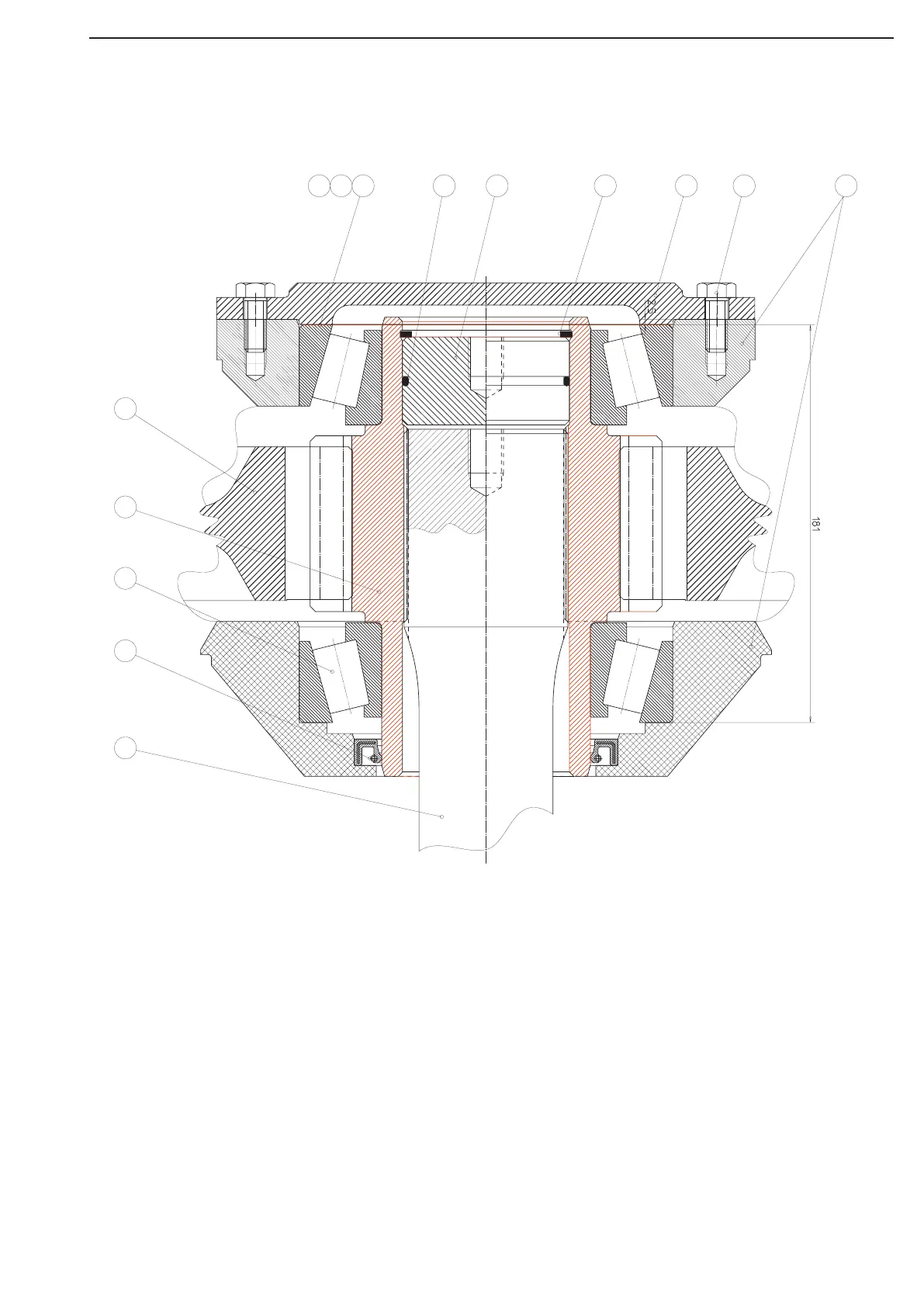

View of the pinion in the tandem housing.
1 Tandem housing
2 Screw M10 x 25
3 Cover
4 Snap ring
5 Thrust washer
6 O-ring
7 Shim cover pinion bearing (0.1mm)
8 Shim cover pinion bearing (0.3mm)
9 Shim cover pinion bearing (0.5mm)
10 Wheel
11 Pinion
12 Roller bearing
13 Seal ring
14 Shaft
1
23
4
5
6
7
8
9
10
11
12
13
14
1 Tandem housing
2 Screw M10 x 25
3 Cover
4 Snap ring
5 Thrust washer
6 O-ring
7 Shim cover pinion bearing (0.1mm)
8 Shim cover pinion bearing (0.3mm)
9 Shim cover pinion bearing (0.5mm)
10 Wheel
11 Pinion
12 Roller bearing
13 Seal ring
14 Shaft
