GALAXY GX2
36
Setting Up the GALAXY GX2
MSA
US
If the Test Stand is NOT using Cylinder Holders, the gas connections on the left-most
GALAXY GX2 Test Stand [ Fig. 17] are as follows from top:
- Fresh Air
- Cylinder 1
- Cylinder 2
- Cylinder 3
- Cylinder 4

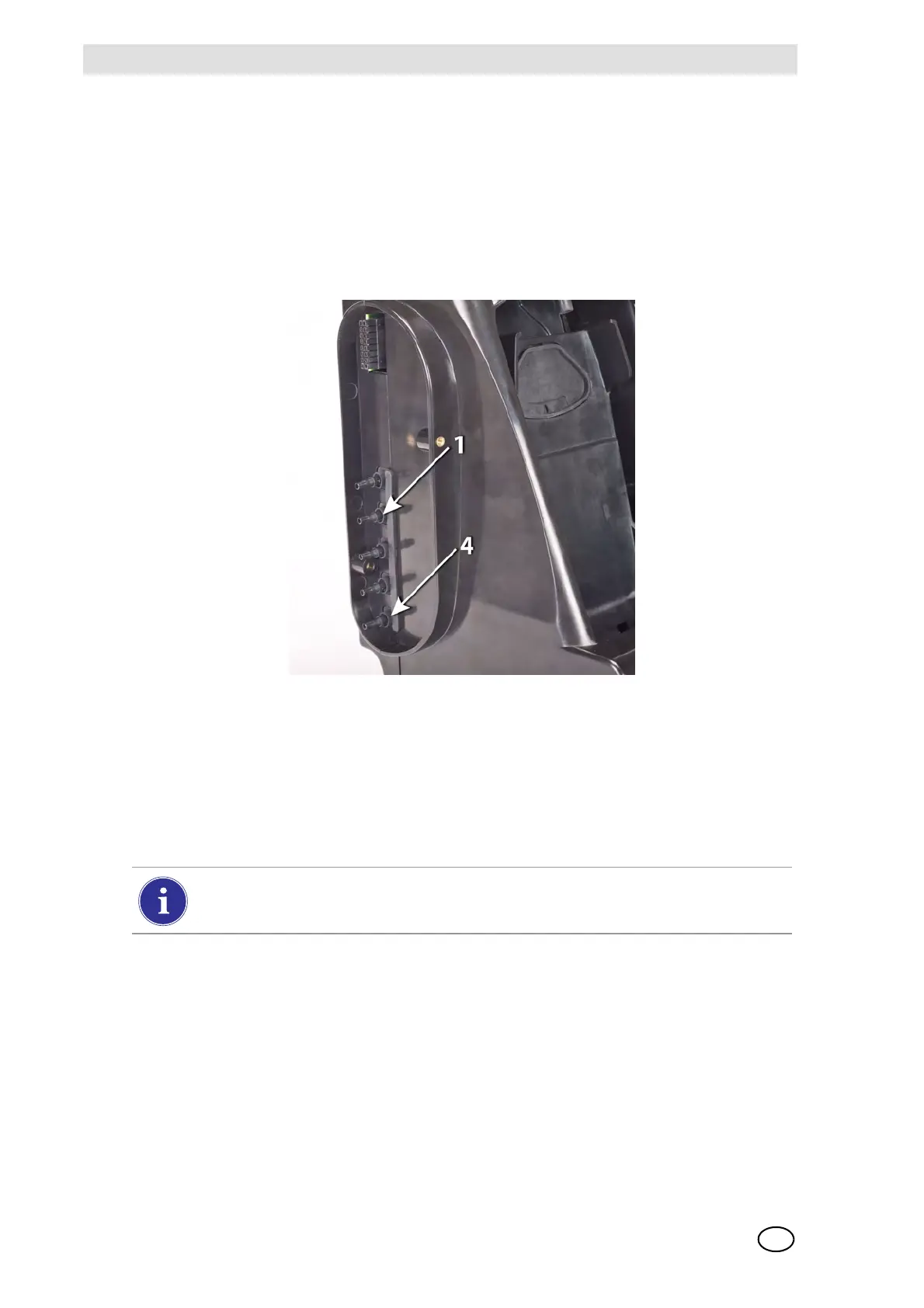

Fig. 17 Gas inlets on the Test Stand
If the Test Stand is using Cylinder Holders [ Fig. 10], they are set up as follows from right to left:
- Cylinder 1 is the closest to the Test Stand.
- Cylinder 2 is to the left of Cylinder 1.
- Cylinder 3 is to the left of Cylinder 2.
- Cylinder 4 is to the left of Cylinder 3.
Fresh Air is the top port on the last installed (left-most) Cylinder Holder.
