© Munters AB, 2018 22
•
Refer to Monitoring the Current
Sense, page 79 for details on
using the Current Sense relays.

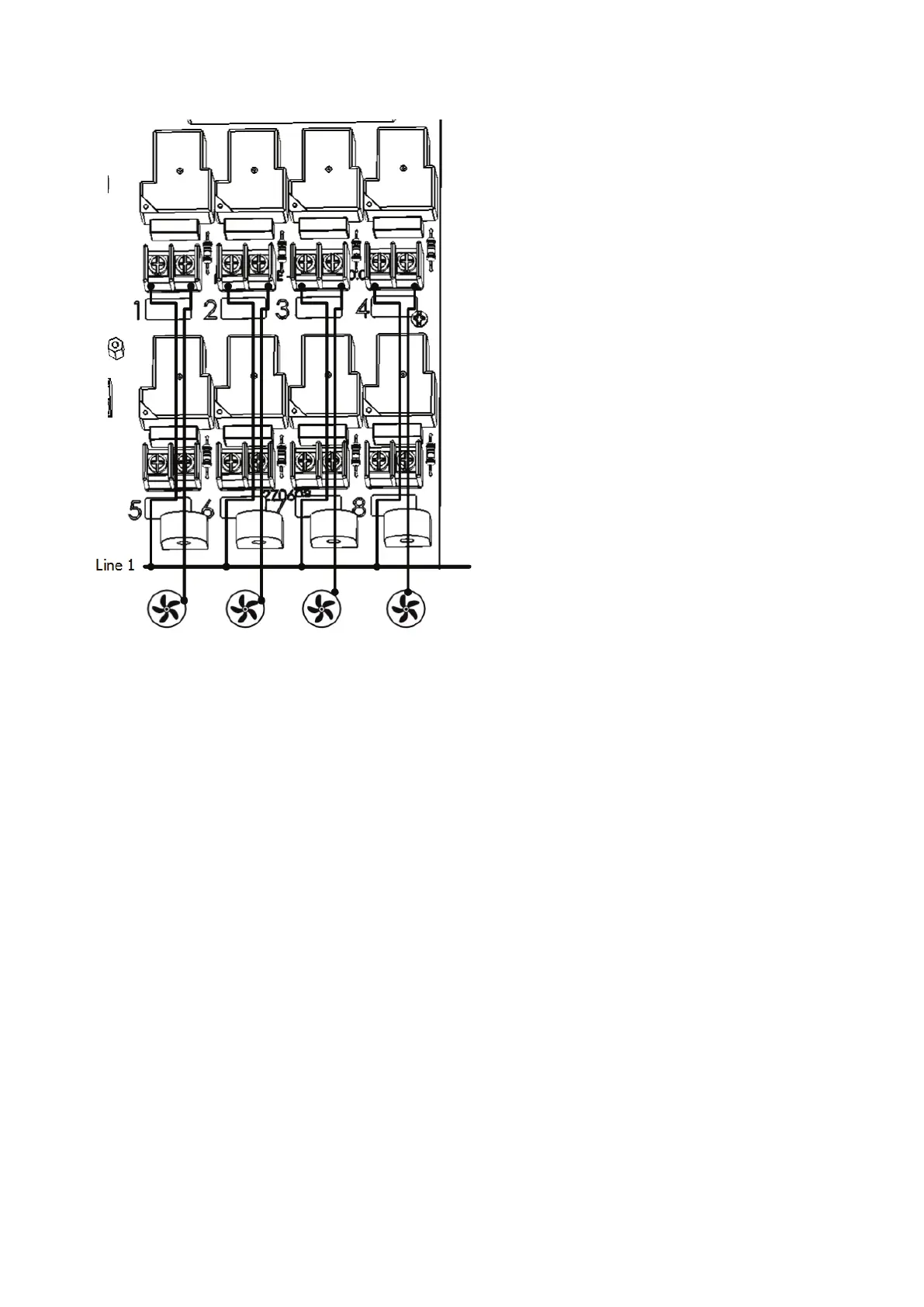

Figure 8: Current Sense Relay Wiring
NOTE Any relay can be wired to a current sensor but winches (if used) are wired to the bottom four
relays. In general winches don't require current monitoring.
NOTE If a device connected to a current sense relay fails, the relay shows 0 volts.
NOTE To enable current sense monitoring, run the cable connecting a device to the relay.
