© Munters AB, 2018 23

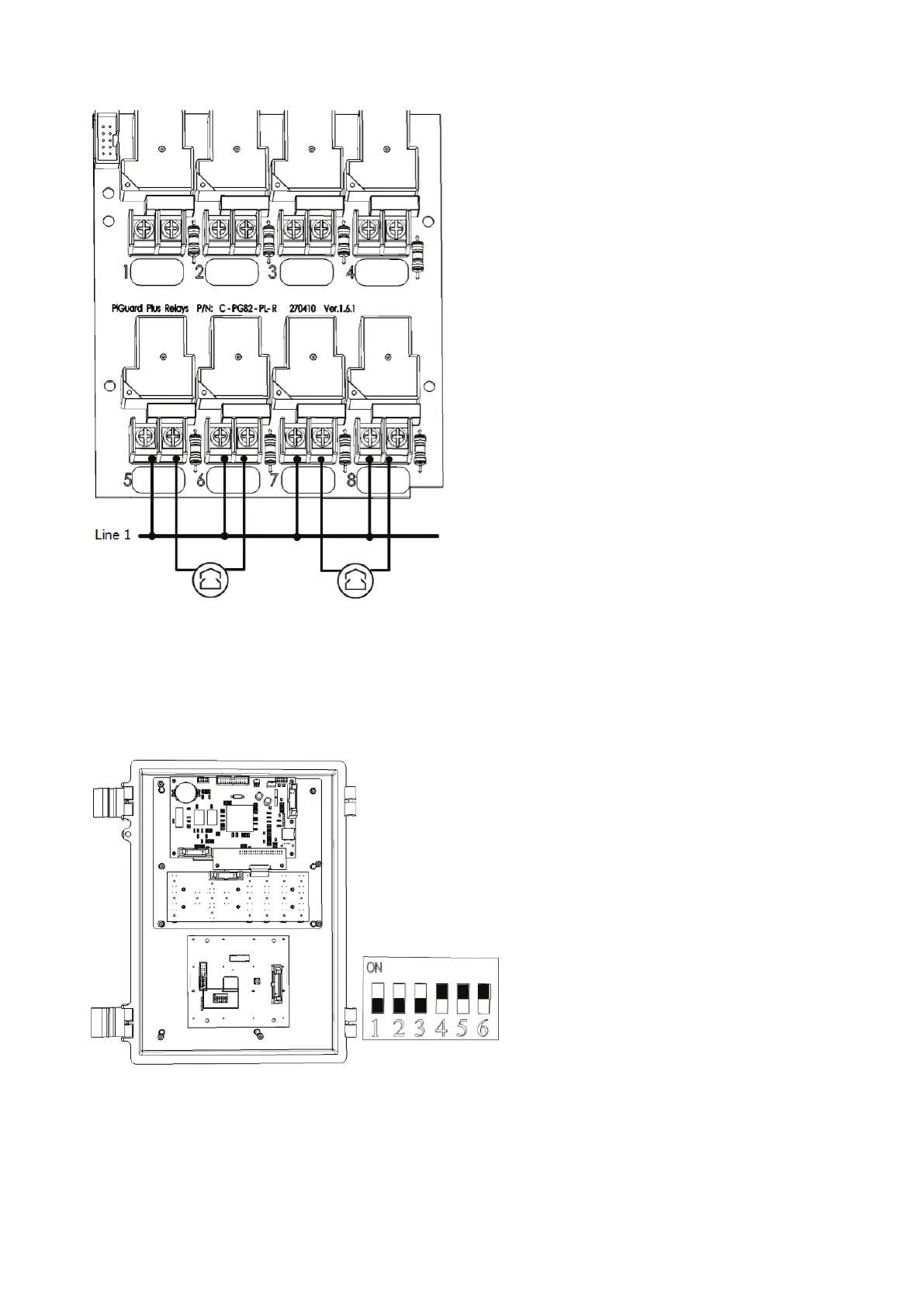

Figure 9: Curtain Relay Wiring
Two relays control each curtain, one to open the curtain and one to close it. To ensure that both relays
do not operate simultaneously, set the dipswitches (found on the switch card):
•
Relays 5 and 6: dipswitches 1, 2, and 3. Set to OFF.
•
Relays 7 and 8: dipswitches 4, 5, and 6. Set to ON.
Figure 10: Curtain Dipswitch Wiring
