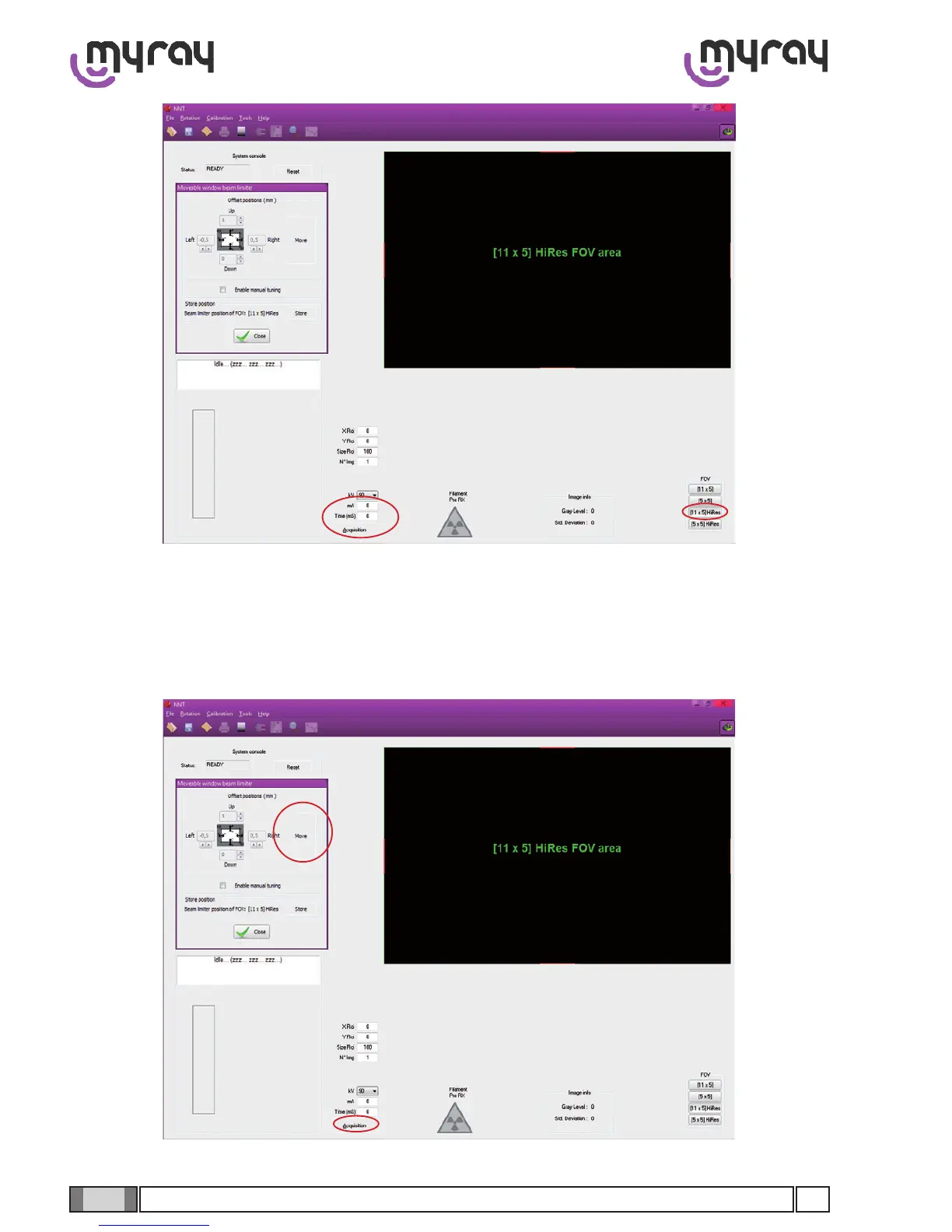

To modify the position of the shutters, tick “Enable Manual Tuning”.
At this point it will be possible to modify the aperture of the collimator by acting for each leaf on the relative controls but-
tons (“Up”, “Down”, “Left” e “Right”). Once the new positions has been set up press the “Move” button. The collimator
willadjusteachleafdependingonthenewvalues.Oncenishedselect“Acquisition”toacquireanewimagewiththe
current collimator aperture.
It is suggested to act on one leaf at a time in order to avoid to forget the values for the others.
