7197 Series II Service Manual Chapter 3: Diagnostics
June 2011
58
Print current setting
This option let you print current setting on receipt.
Press the Paper Feed Button to start the test.
** START CURRENT SETTING PRINTING?
Return Main Menu -> Short Click
Start Printing -> Long Click
Note: Press the Paper Feed Button for at least one second to validate the selection.
*** Current Setting Form ***
Model number : 7197 6301-9001
Serial number : 1234567890
Boot Firmware
Revision : V01.00
CRC : D3CE
P/N : 497-0426489

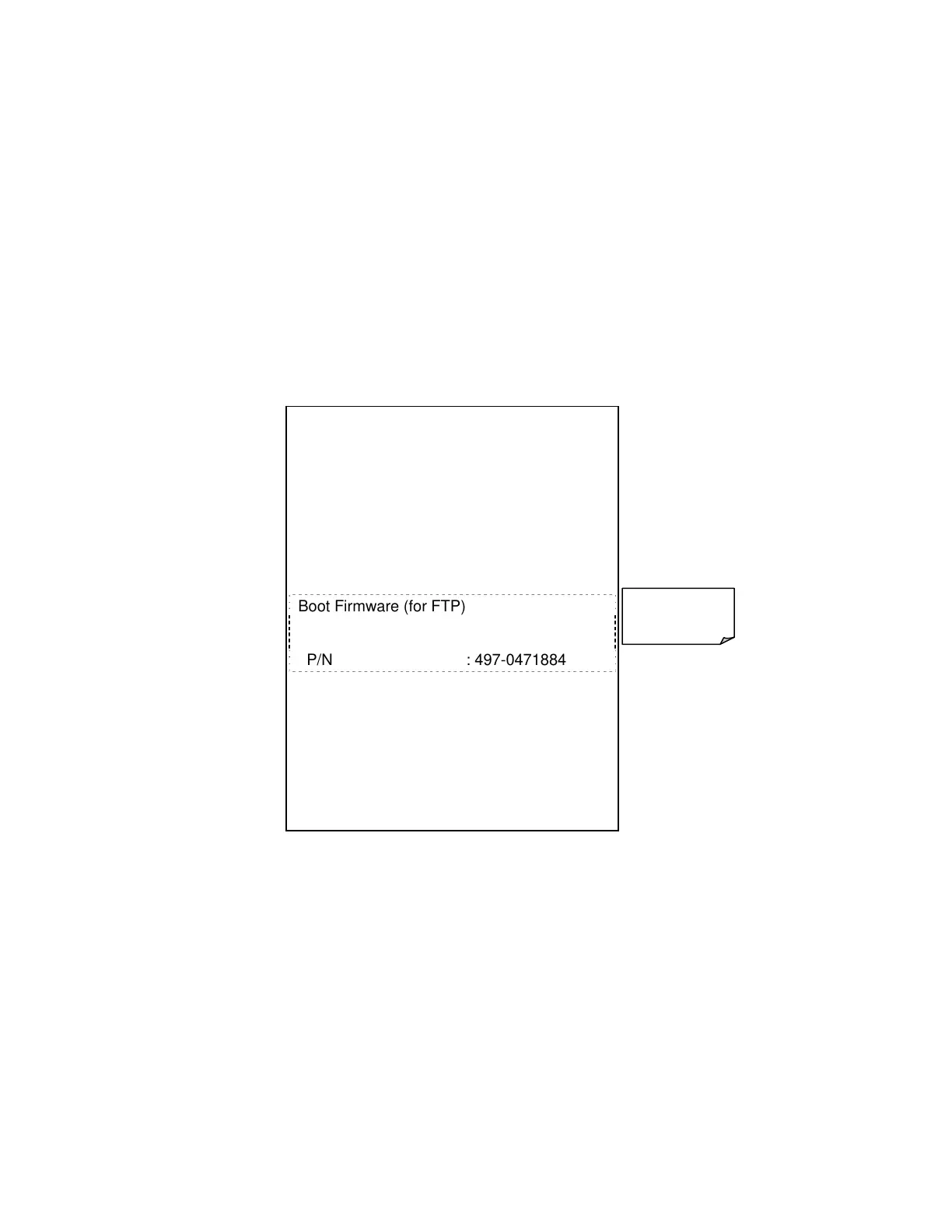

Boot Firmware (for FTP)
Revision : L00.01
CRC : 12AB
P/N : 497-0471884
Flash Firmware
Revision : V01.00
CRC : AC12
P/N : 497-0426493
SBCS
Revision : V01.00
DBCS
Revision : V01.00
Ethernet
model only
To Next Page
