8 Mechanical Characteristics
This chapter describes mechanical characteristics of the N715-EA module.
8.1 Dimensions

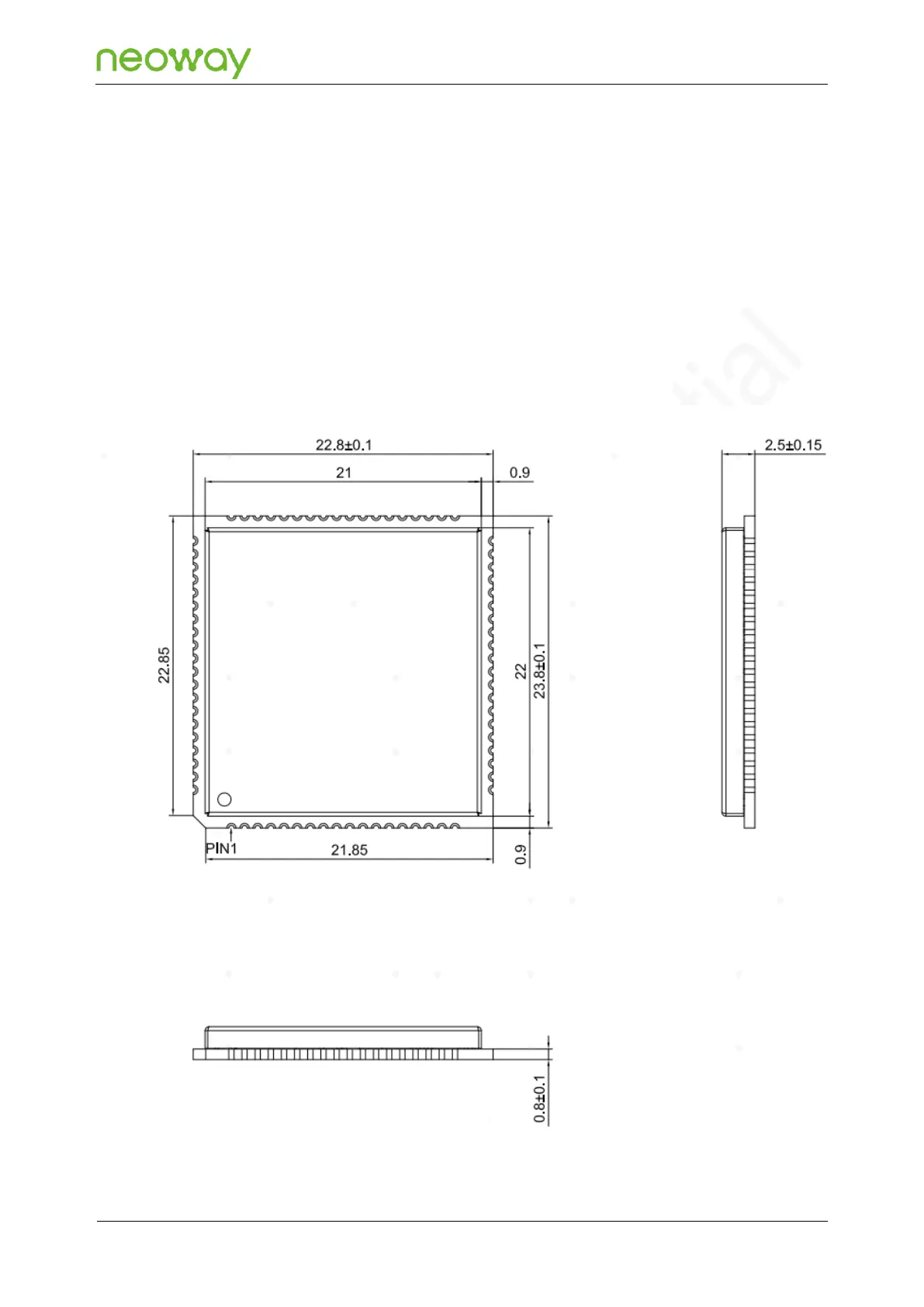

Figure 8-1 N715-EA top and side view dimensions (unit: mm)
