Neoway N715-EA - Mechanical Characteristics; Dimensions

N715-EA Hardware User Guide
Chapter 9 Mounting
Copyright © Neoway Technology Co., Ltd. All rights reserved.
81
9 Mounting
This chapter describes the module PCB package and application PCB package of N715-EA, as well
as the key points of SMT related technology.
9.1 PCB Package

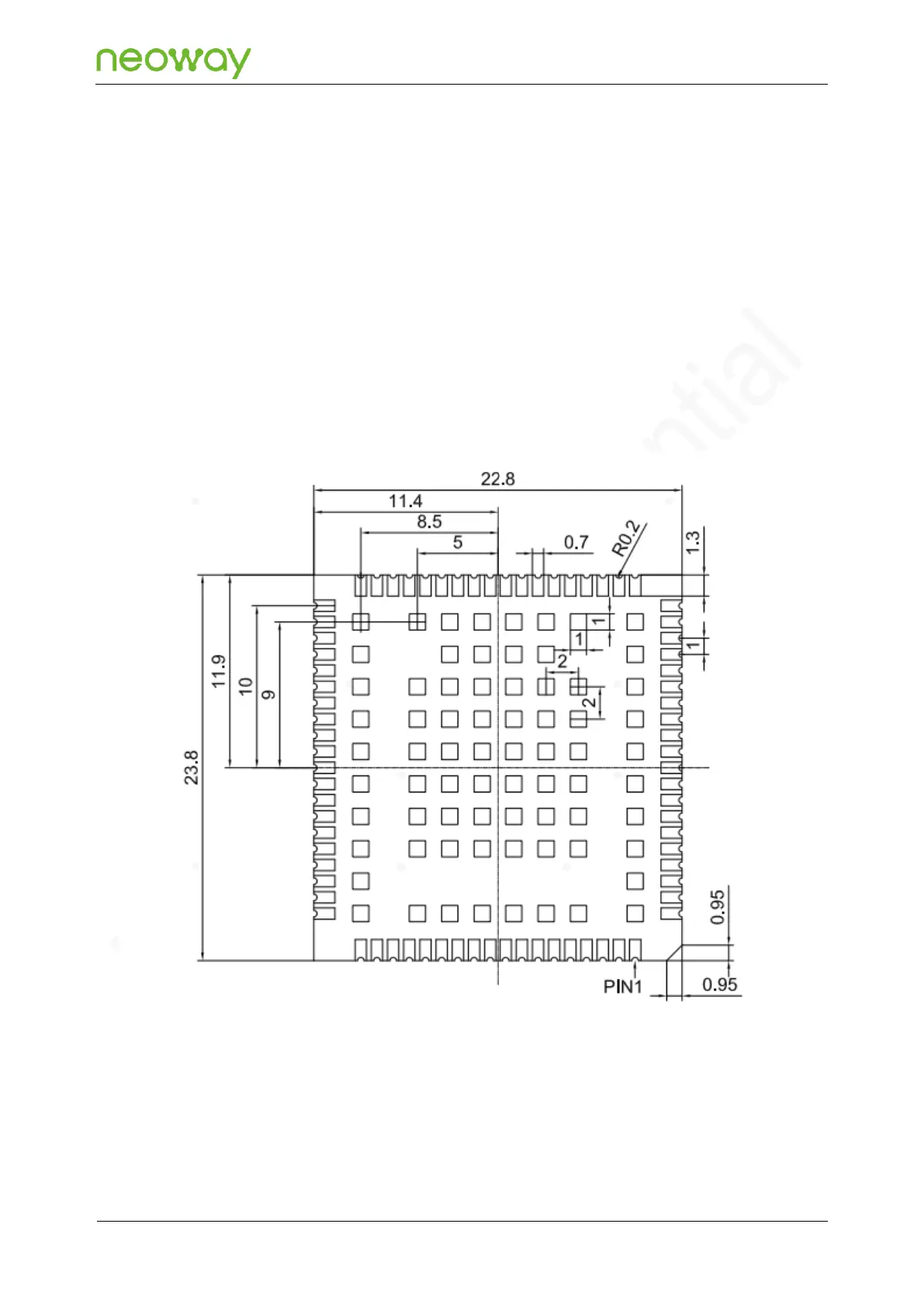

Figure 9-1 Bottom view of N715-EA PCB package (unit: mm)
