2. Turn the controller canister over, so that the removable cover faces down.
3. With the cam handle in the open position, slide the controller canister all the way into the
controller shelf.

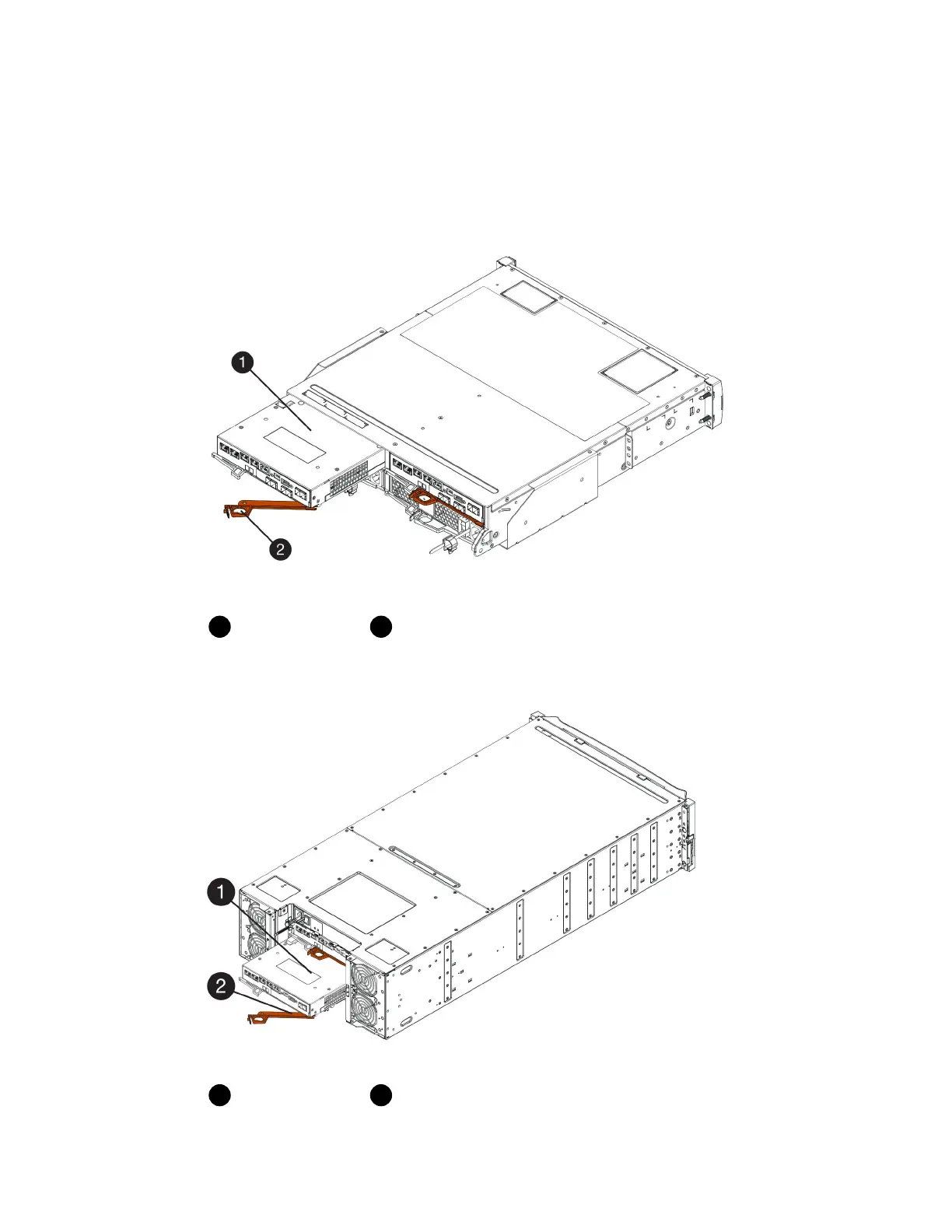

The following figure is an example of an E5724 controller shelf:
1
Controller canister
2
Cam handle
The following figure is an example of an E5760 controller shelf:
1
Controller canister
2
Cam handle
4. Move the cam handle to the left to lock the controller canister in place.
