Drive drawer release lever
b. Disengage both release levers by pulling the latches toward you.
c. While holding both release levers, pull the drive drawer toward you.
d. Remove the drive drawer from the drive shelf.
After you finish
Go to
Install new drive drawer (60-drive)
on page 73.
Install new drive drawer (60-drive)
You install a new drive drawer to replace the failed one. Installing a drive drawer into a drive tray
entails sliding the drawer into the empty slot, installing the drives, and replacing the front bezel.
Before you begin
• You know where to install each drive.
• You must have a replacement drive drawer.
• You must have a flashlight.
Steps

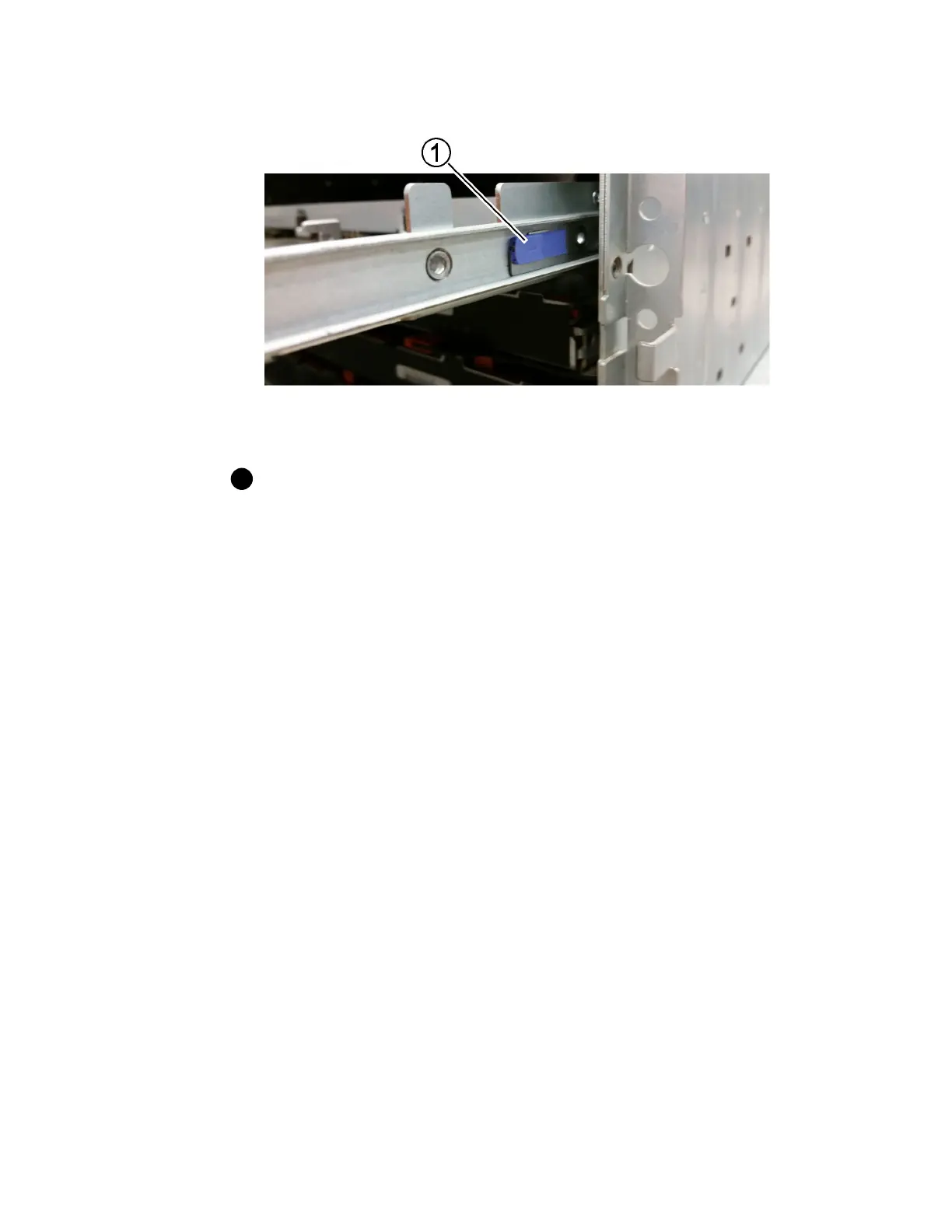

1. From the front of the drive shelf, shine a flashlight into the empty drawer slot, and locate the lock-
out tumbler for that slot.
The lock-out tumbler assembly is a safety feature that prevents you from being able to open more
than one drive drawer at one time.
Drives |
73
