Drives
A drive is an electromagnetic mechanical device that provides the physical storage media for data.
Overview and requirements
Before you replace a drive, you need to be aware of certain requirements and considerations.
Drives overview
You can replace a drive in either a 24-drive or 60-drive controller shelf or drive shelf.
24-drive shelves
The figures show how the drives are numbered in each type of shelf (the shelf's front bezel or end
caps have been removed).

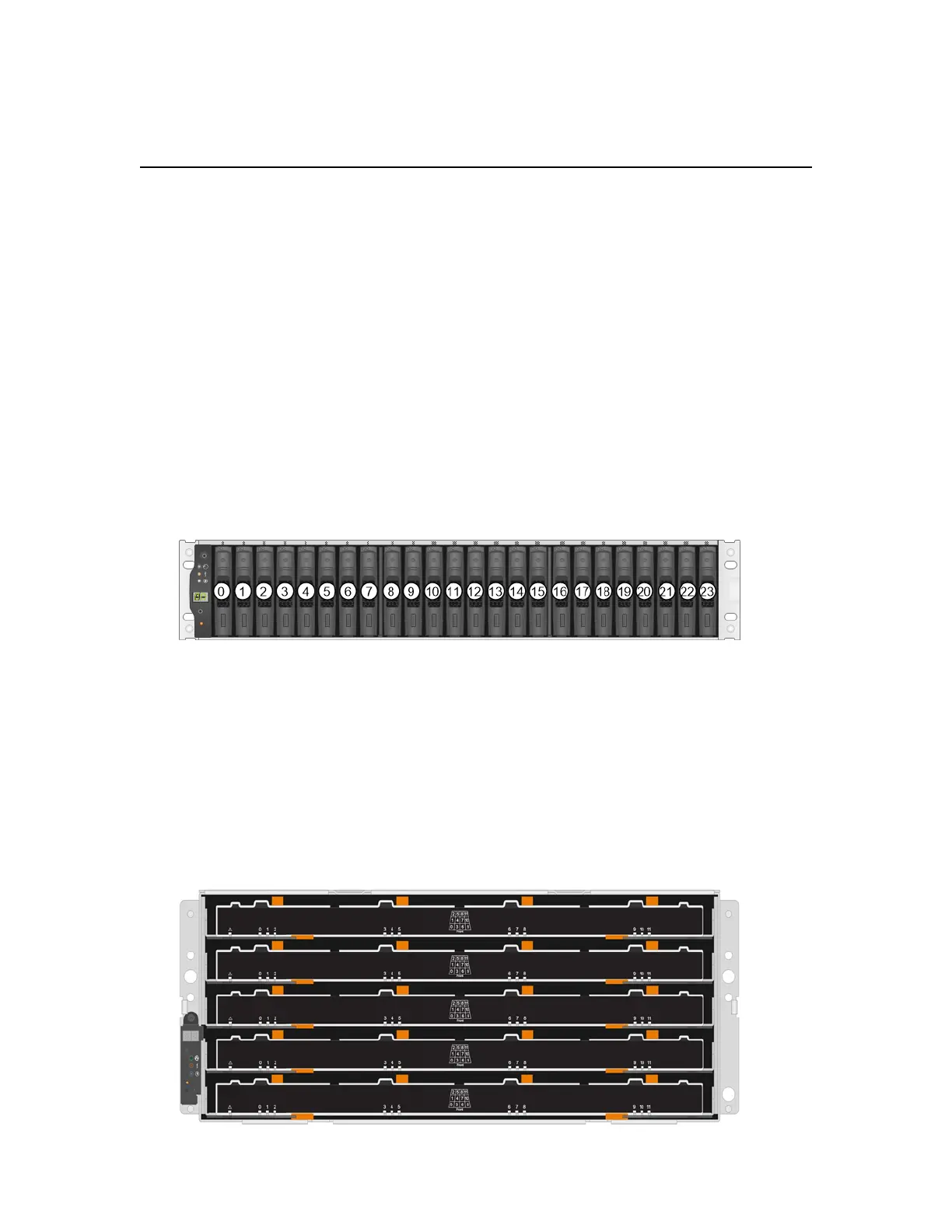

Drive numbering in an E5724 controller shelf or DE224C drive shelf
Note: Your E5724 storage array might include one or more SAS-2 legacy expansion drive trays,
including the DE5600 24-drive tray or the DE6600 60-drive tray. For instructions for replacing a
drive in one of these drive trays, see
Replacing a Drive in E2660, E2760, E5460, E5560, or E5660
Drive Trays
and
Replacing a Drive in E2600, E2700, E5400, E5500, and E5600 12-Drive or 24-
Drive Trays
.
60-drive shelves
Both the E5760 controller shelf and the DE460C drive shelf consist of five drive drawers that each
contain 12 drive slots. Drive drawer 1 is at the top, and drive drawer 5 is at the bottom.
