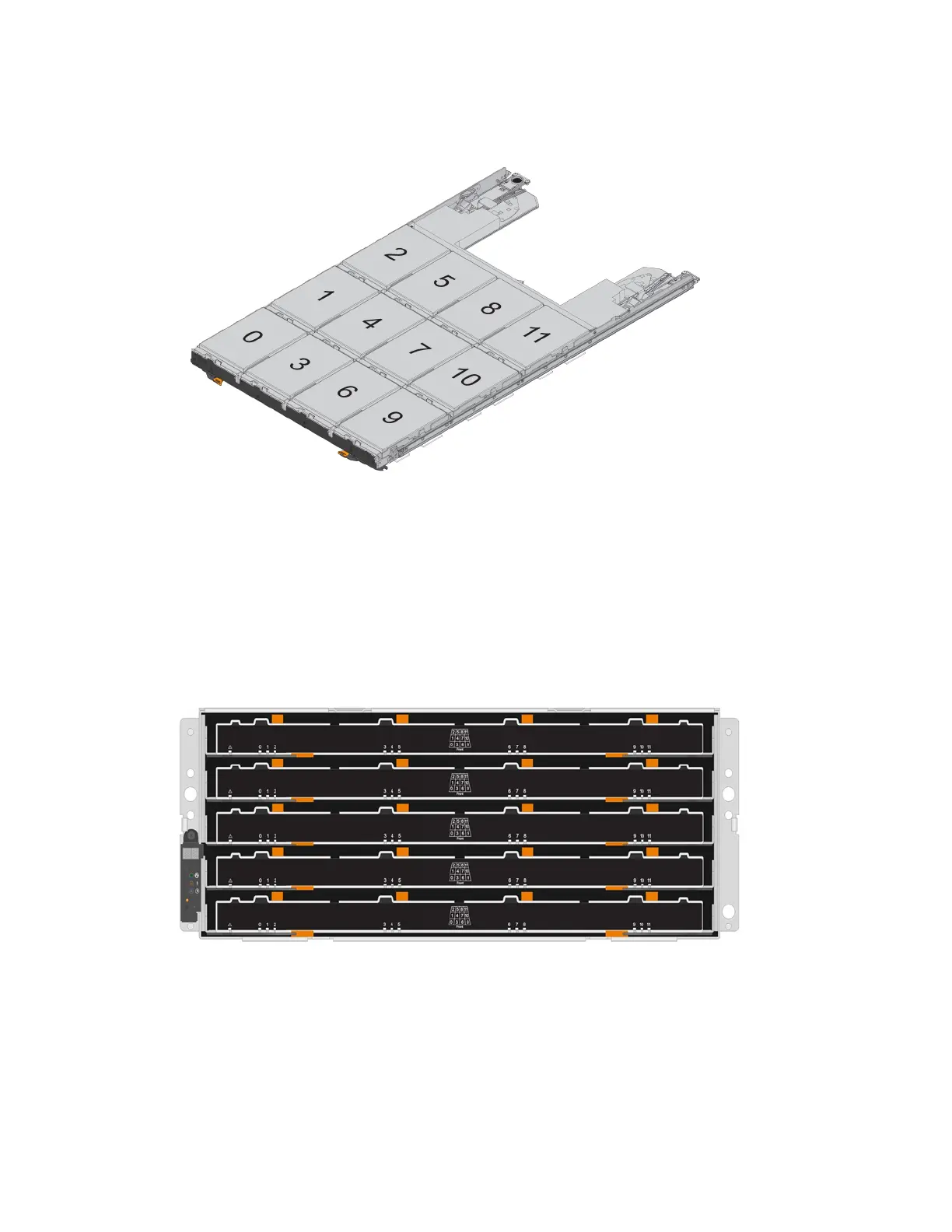

For both an E5760 controller shelf drawer and a DE460C drive shelf drawer, drives are numbered
from 0 to 11 in each drive drawer within the shelf.
Note: Your E5760 storage array might include one or more SAS-2 legacy expansion drive trays,
including the DE1600 12-drive tray, the DE5600 24-drive tray, or the DE6600 60-drive tray. For
instructions for replacing a drive in one of these drive trays, see
Replacing a Drive in E2660,
E2760, E5460, E5560, or E5660 Trays
and
Replacing a Drive in E2600, E2700, E5400, E5500,
and E5600 12-Drive or 24-Drive Trays
.
Drive drawer overview
You can replace a drive drawer in a E5760 controller shelf and a DE460C drive shelf. Each of these
60-drive shelves has five drive drawers.
Each of the five drawers can hold up to 12 drives.
