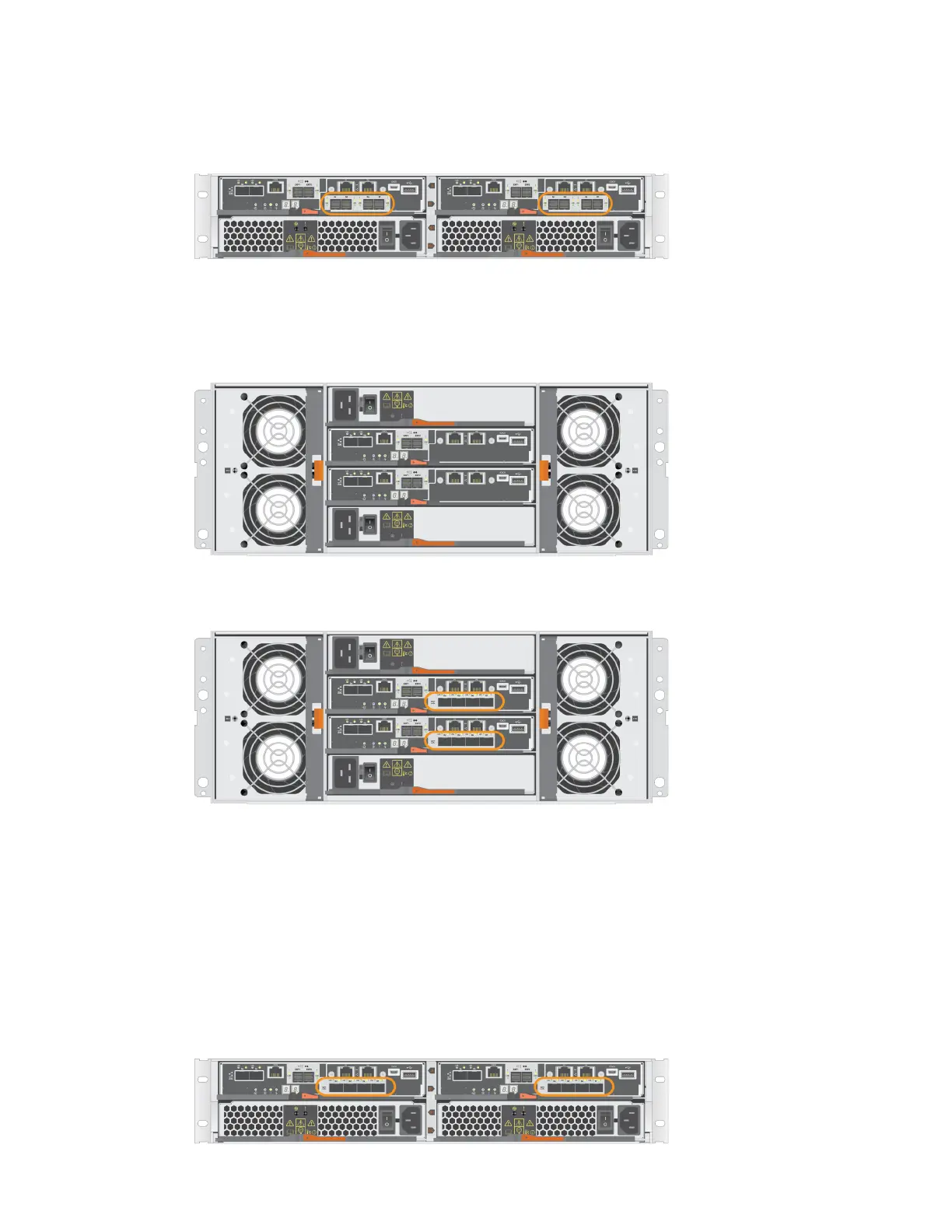

The following figures show an E5760 controller shelf with two controller canisters before and after
adding a HIC into each controller.
Note: The figures show example controller canisters with example HICs. You might have different
types and numbers of baseboard ports and HIC ports.
Upgrade HIC
You change the host protocol by upgrading the HIC currently installed in an E5700 controller
canister with a different type of HIC. The following figures show an E5724 controller shelf before
and after a HIC upgrade. The two HICs in the first figure have four SFP+ (optical) host ports, and the
two HICs in the second figure have four SAS ports.
Host interface cards |
81
