Attention: To prevent degraded performance, do not twist, fold, pinch, or step on the cables.
3. Confirm that the Cache Active LED on the back of the controller is off.
The green Cache Active LED on the back of the controller is on when cached data needs to be
written to the drives. You must wait for this LED to turn off before removing the controller
canister.

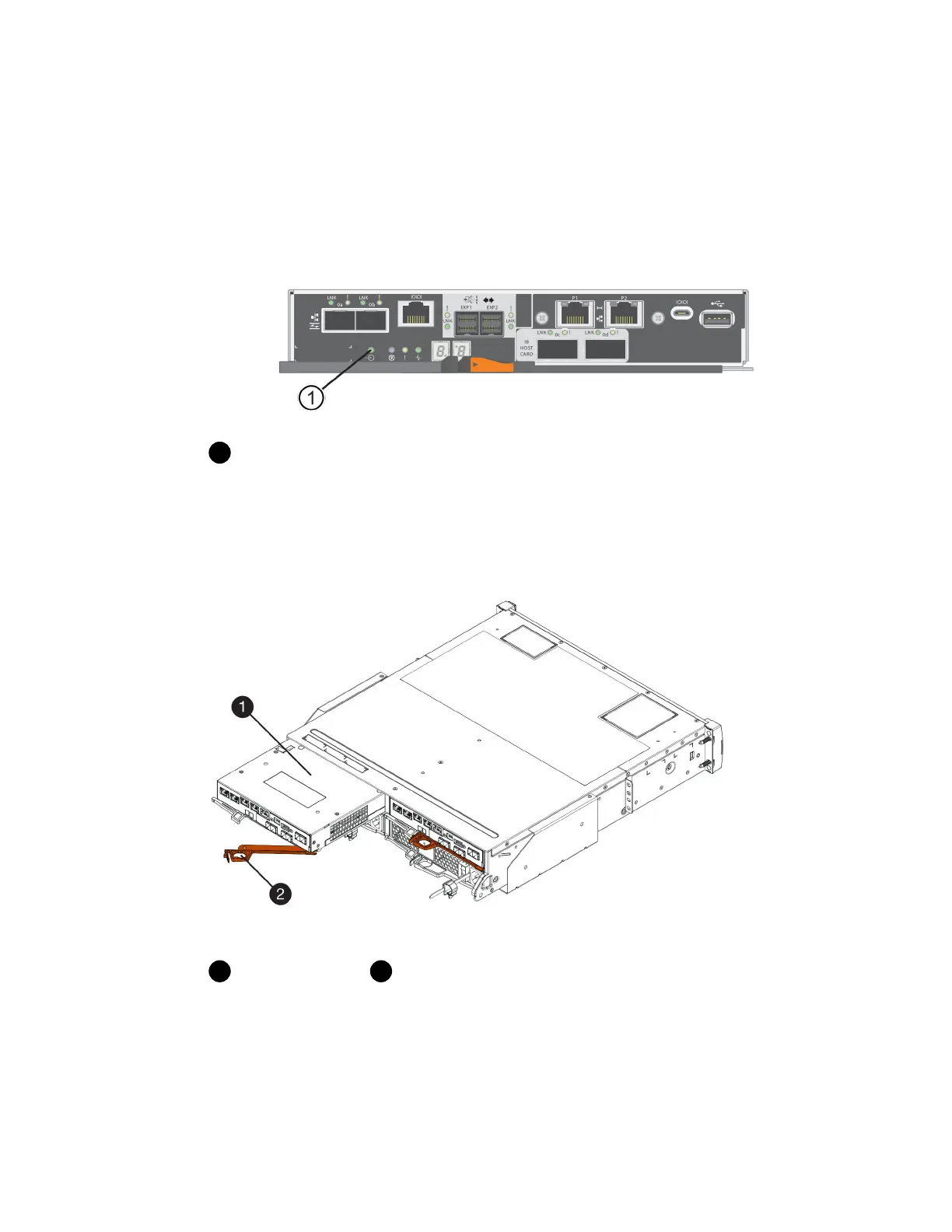

Cache Active LED
4.
Squeeze the latch on the cam handle until it releases, and then open the cam handle to the right to
release the controller canister from the shelf.
The following figure is an example of an E5724 controller shelf:
Controller canister
Cam handle
The following figure is an example of an E5760 controller shelf:
Host interface cards |
87
