GS748T Smart Switch
This example shows how to configure the GS748T switch with the following settings:
• Port g3
is a tagged member of VLAN 10 and uses VLAN 10 as the port VLAN ID (PVID).
• Port g20
is a tagged member of VLAN 20 uses VLAN 20 as the PVID.
• VLAN 10 is co
nfigured with an IP address of 192.168.10.3/24
• VLAN 20 is co
nfigured with an IP address of 192.168.20.15/24
• Routin
g is enabled.
Use the following steps to perform the VLAN routing configuration:
1. From the Switc
hing > VLAN > Basic > VLAN Configuration page, create VLANs 10
and 20.
2. From t

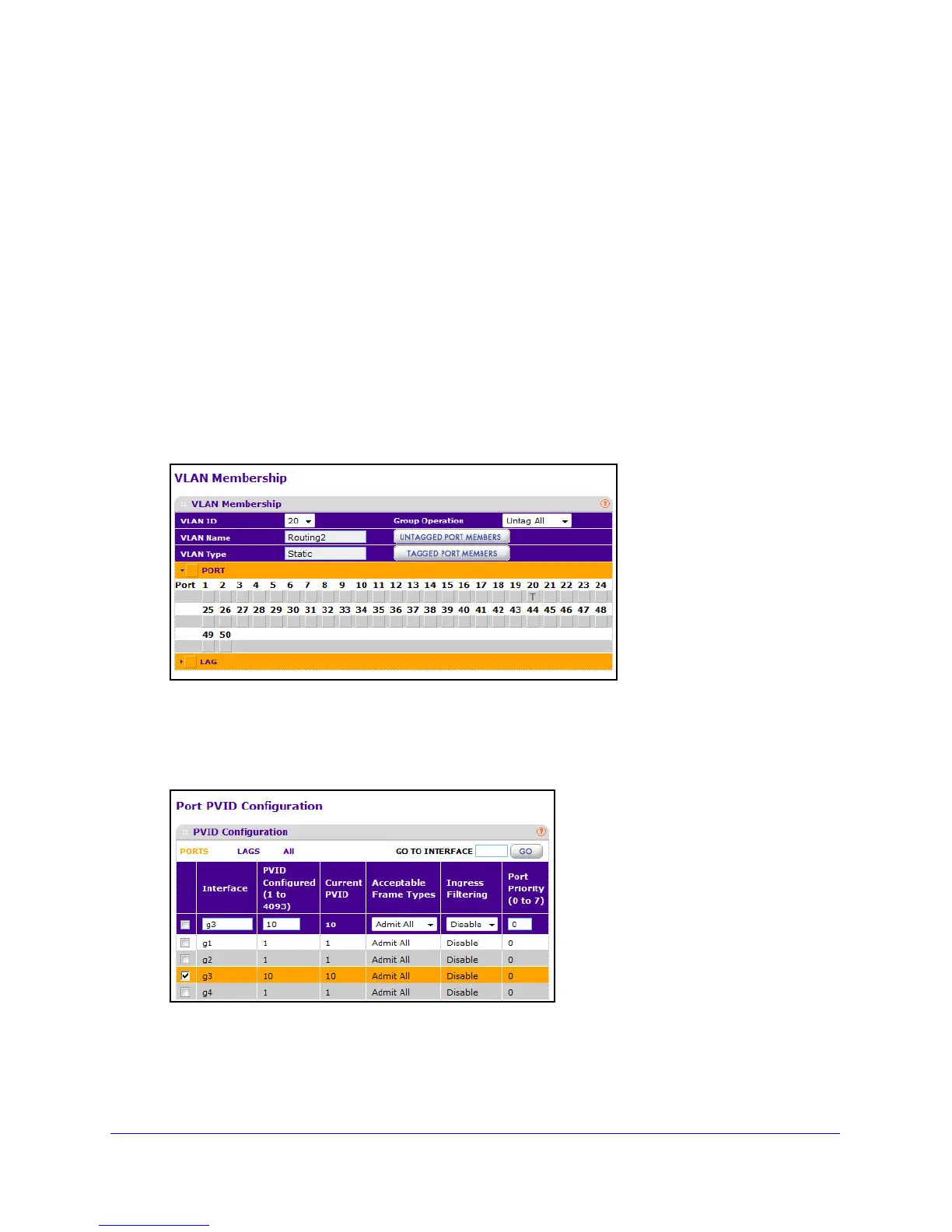

he Switching > VLAN > Advanced > VLAN Membership page:
• Include
Port g3 as a tagged member (T) of VLAN 10.
• Include
Port g20 as a tagged member of VLAN 20.
3. From the Switching > VLAN > Advanced > Port PVID Configuration page:
• Set the
PVID for Port g3 to 10.
• Set the
PVID for Port g20 to 20.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
