13. NW6890 FRM PoE Splitter Box for non-Netwave capsules
13.1 General

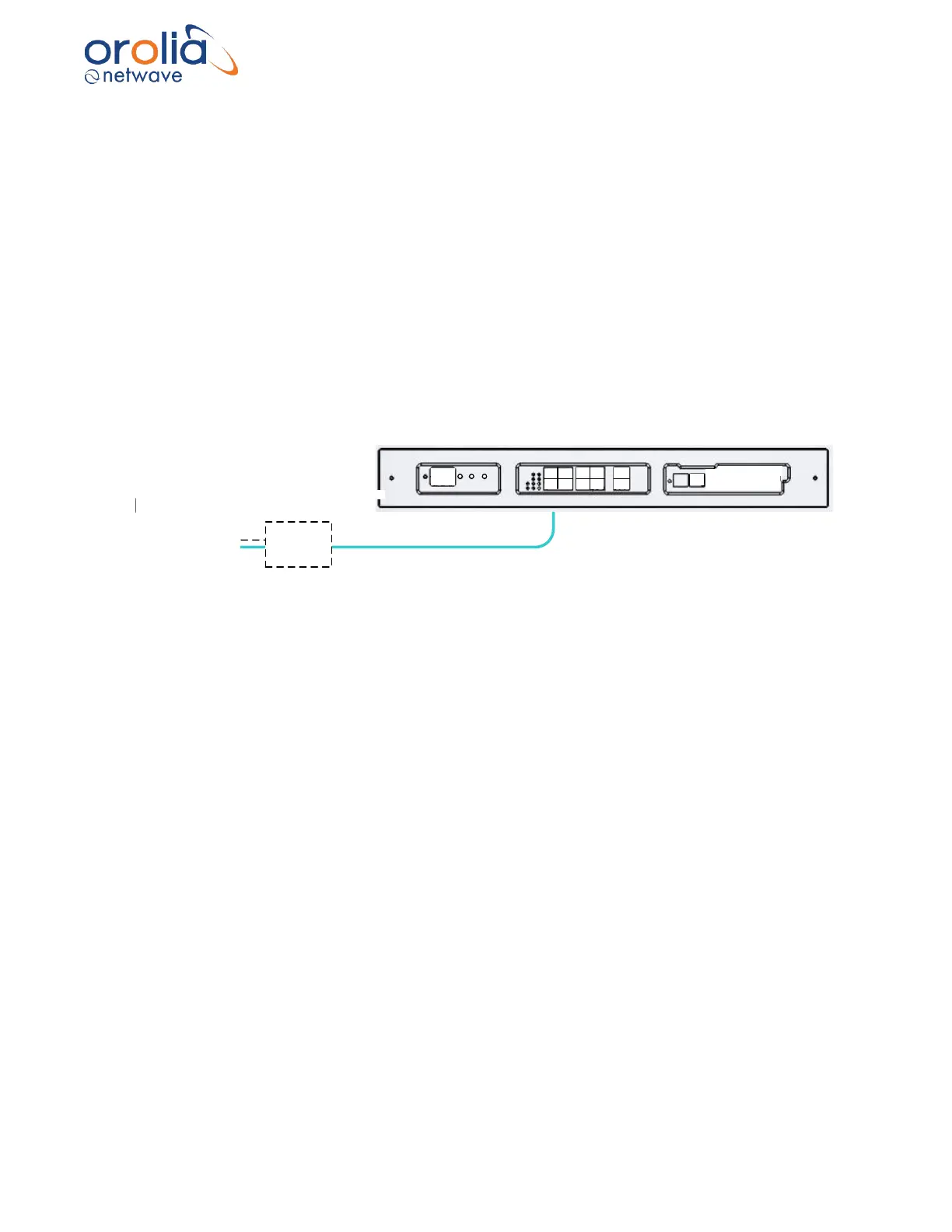

This junction box provides 24V DC to power the HVR04 Final Recording Medium from a single
PoE network cable originating from the CM (core module). This junction box is not required to
install the standard fixed capsule or the Jotron free floating FRM. This principle serves the
performance criteria for the VDR which include continued operation (recording of specific data)
during a power-failure. In that case the PoE (power) will be available for two hours.
13.2 Location and mounting
This junction box with integrated power splitter is mounted in the vicinity of the fixed capsule (in
an unprotected environment (IEC60945) but may also be placed below-deck.
13.3 Power
This device fully relies on the Ethernet PoE supplied from the Core Module.
This unit has 1 x 100 TX PoE ports, receiving 802.3af compliant PoE @48V. The total power
budget is 3,6 Watts.
