22.6 Analyze Tool
The analyze tool scans real time incoming NMEA data sources and presents them in an easy to
configure filterable list. This data can be used for configuring the playback software as well as
trouble shooting connections.

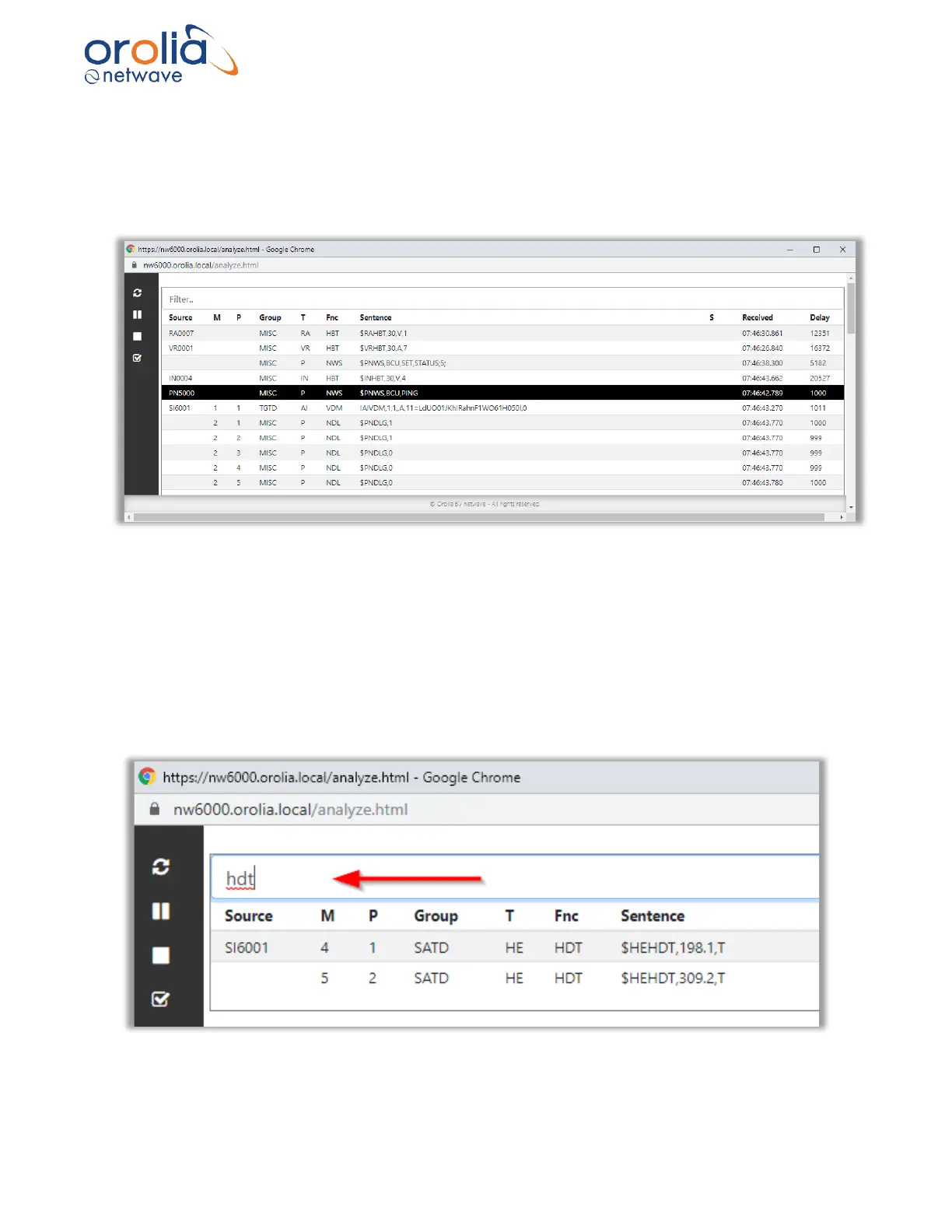

Figure 22.6.1 - Configurator page, Analyze tool
The buttons in the left menu from top to down have the following functionality.
Refresh clears the list and continues to scan.
Pause freezes updates to analyze table
Stop stops the analyzer
Disable alerts timeouts for successive sentences are displayed in red.
Figure 22.6.2 - Analyze tool, filter option
