NetWave NW6000 - Wiring Scheme

Page 109/ 191
14.5 Wiring scheme
All DIN rail mountable adaptors have a unified connector and wiring identification scheme. Please
note that there are 3 different sizes of adaptors (depending on port characteristics and number of
ports), with a varying number of connectors and wires. Consequently, these adaptors differ in
width.

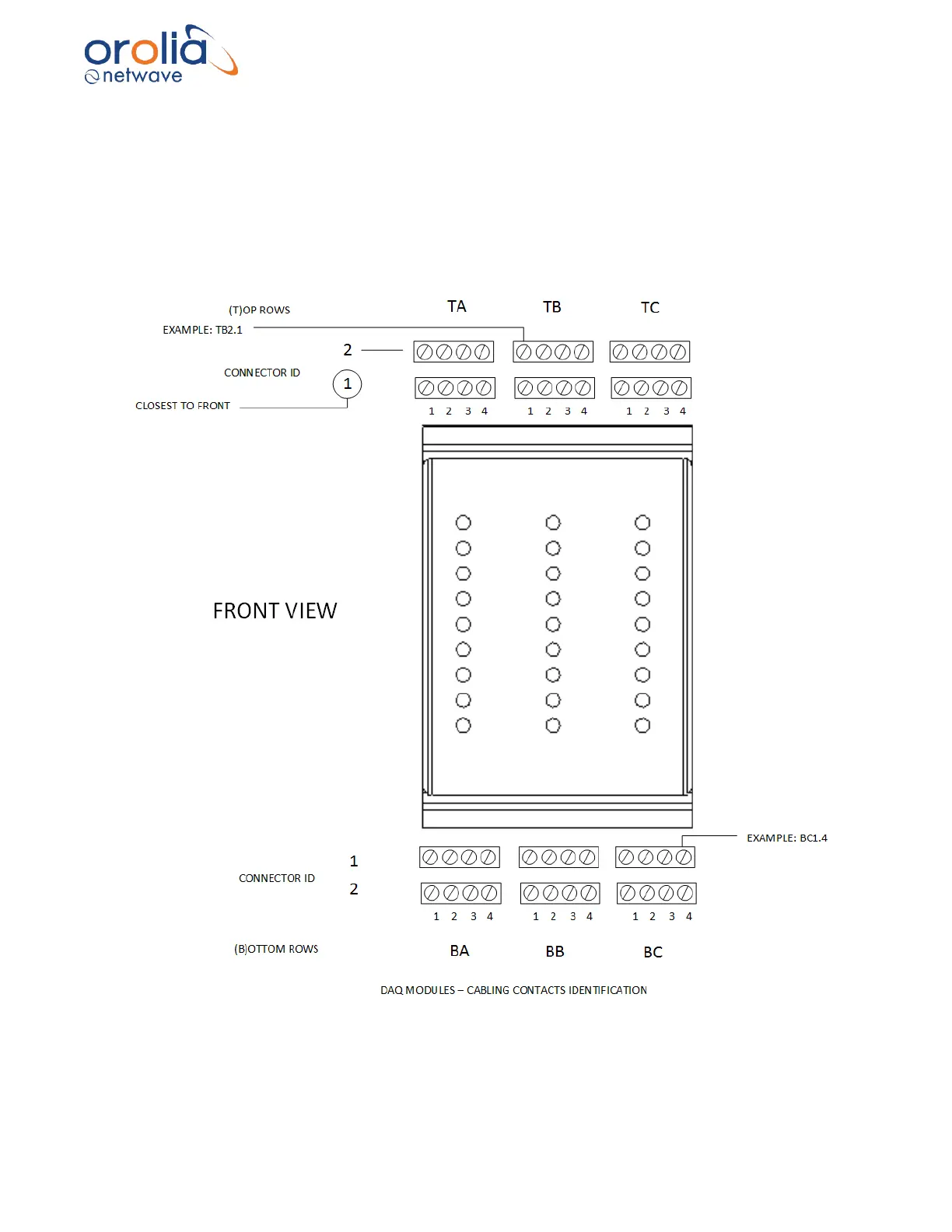

The connector and wiring identification are as follows.
