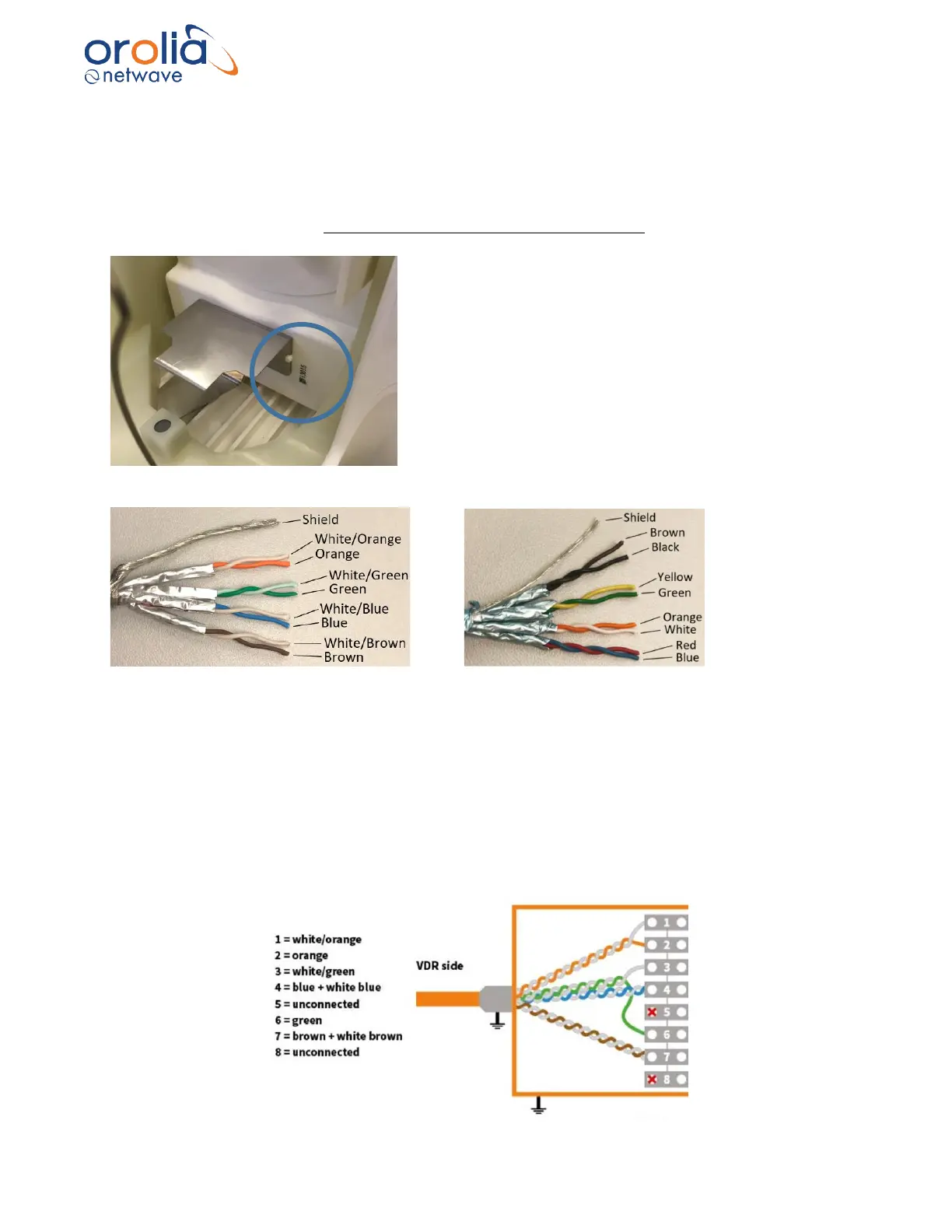

11.4.2 Wire schematic Junction box
There are 2 different cable types of the TRON 40VDR with 3 different cable connections (2 for cable type
1, 1 for cable type 2). Identify the serial number of the docking module and identify the cable type of TRON
40VDR to determine the applicable wire diagram. The serial number of the docking module can be found
as indicated on picture below, this is not the serial number of the VDR EPIRB.
Cable type 1 TRON 40VDR: Cable type 2 TRON 40VDR:
Connect the TRON 40VDR to the VDR via the junction box as further described.
Notes:
- Connect inside the junction box on the VDR side White/blue and Blue wires together.
- Connect inside the junction box on the VDR side the White/brown and Brown wires together.
- Note that exchanging the DC + and DC – will not cause any damage, but the TRON 40VDR will not
work.
Connections NW6000 VDR side:
