Page 116/ 191

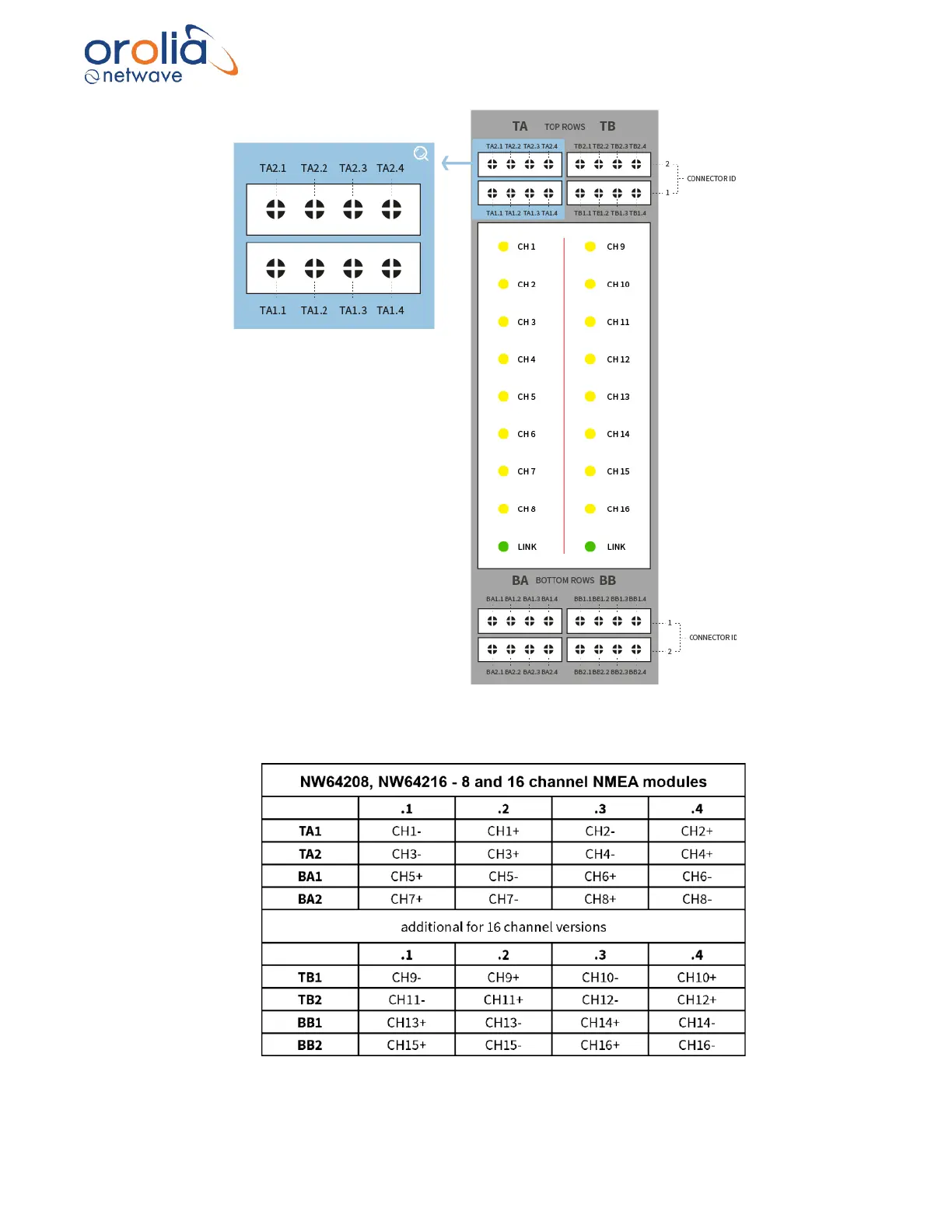

Figure 16.4.2 – Connection figure NMEA Module 16 channels

Figure 16.4.3 – Connection table NMEA Modules
