The total maximum cable distance between microphone and Audio Hub (NW6031) is 150m.
The microphone housings are provided with three mounting holes. The screw cover supplied with
the NW6030 can be used to cover these. Please ensure that the additional rubber seal is added
before placing the screw cover; this enables easier removal of the screw cover cap if necessary,
during the service life of the microphone.
The rubber seals provided with the microphones are used to minimize vibrations being carried into
the microphones as well as providing a barrier between metals of different materials thus
minimizing the effects of corrosion.
Insert the top housing including microphone print, connect the cables and fix with screws on the
side.

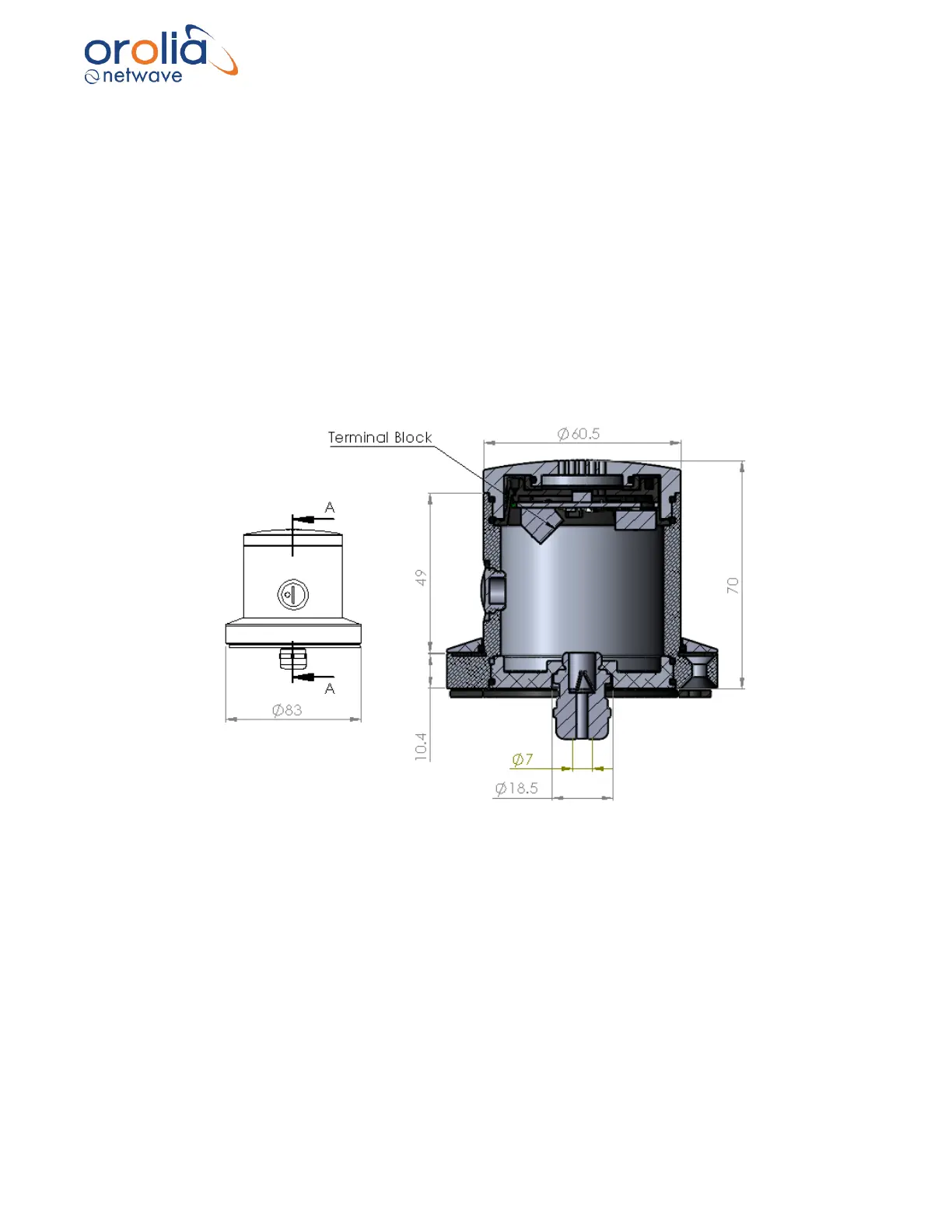

Figure 8.2.1 Outline of NW6030 for surface mounting
