Note: With many radar images, it may be difficult to determine the true upper left corner of the
captured image. The installer may have to adjust the image’s position several times to ensure it is
as close as possible to the top left corner without losing any part of the image.

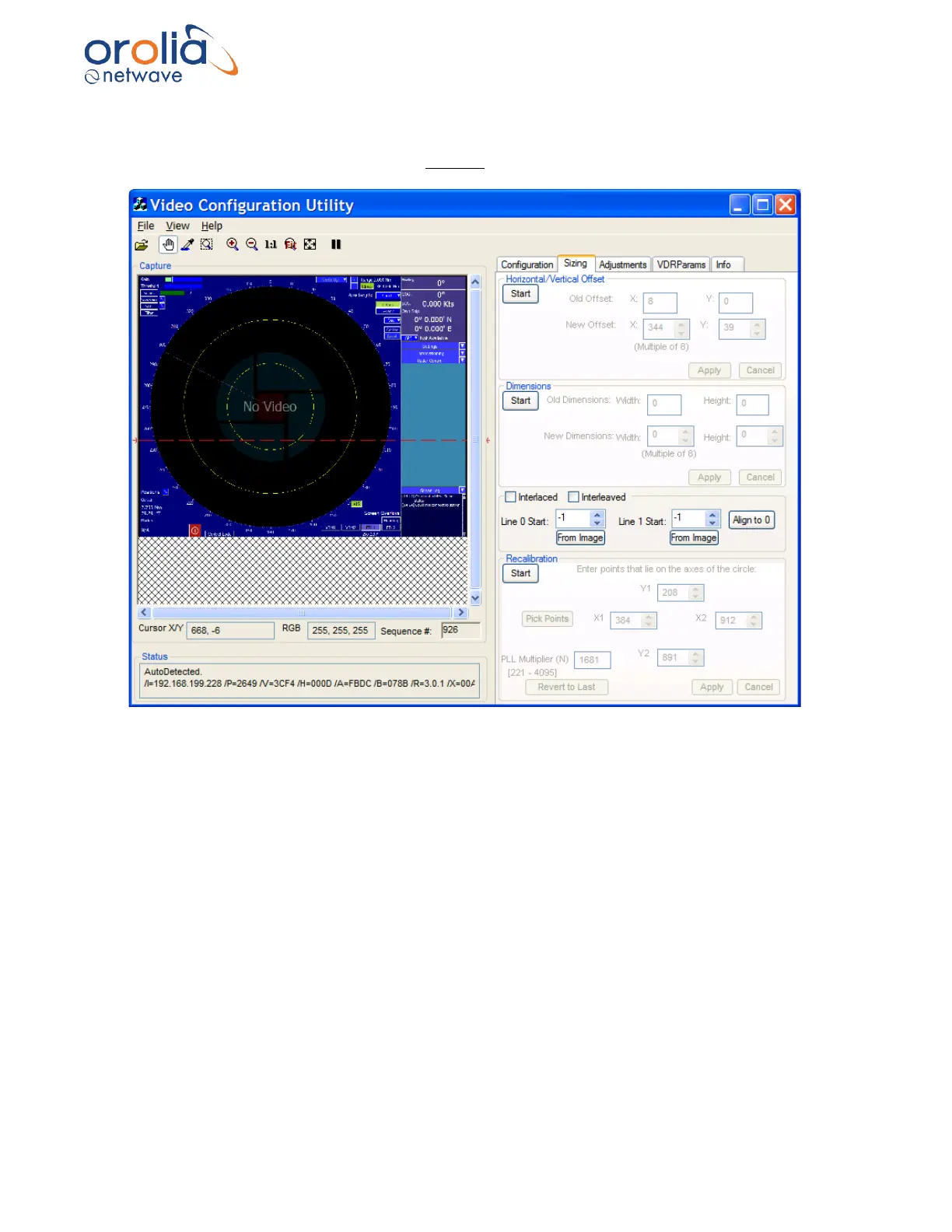

Figure 10.20.3 - Recalibrated image with Image Offsets adjusted
