NewSonic SonoDur2 Issue 04 09/2016 Page 28

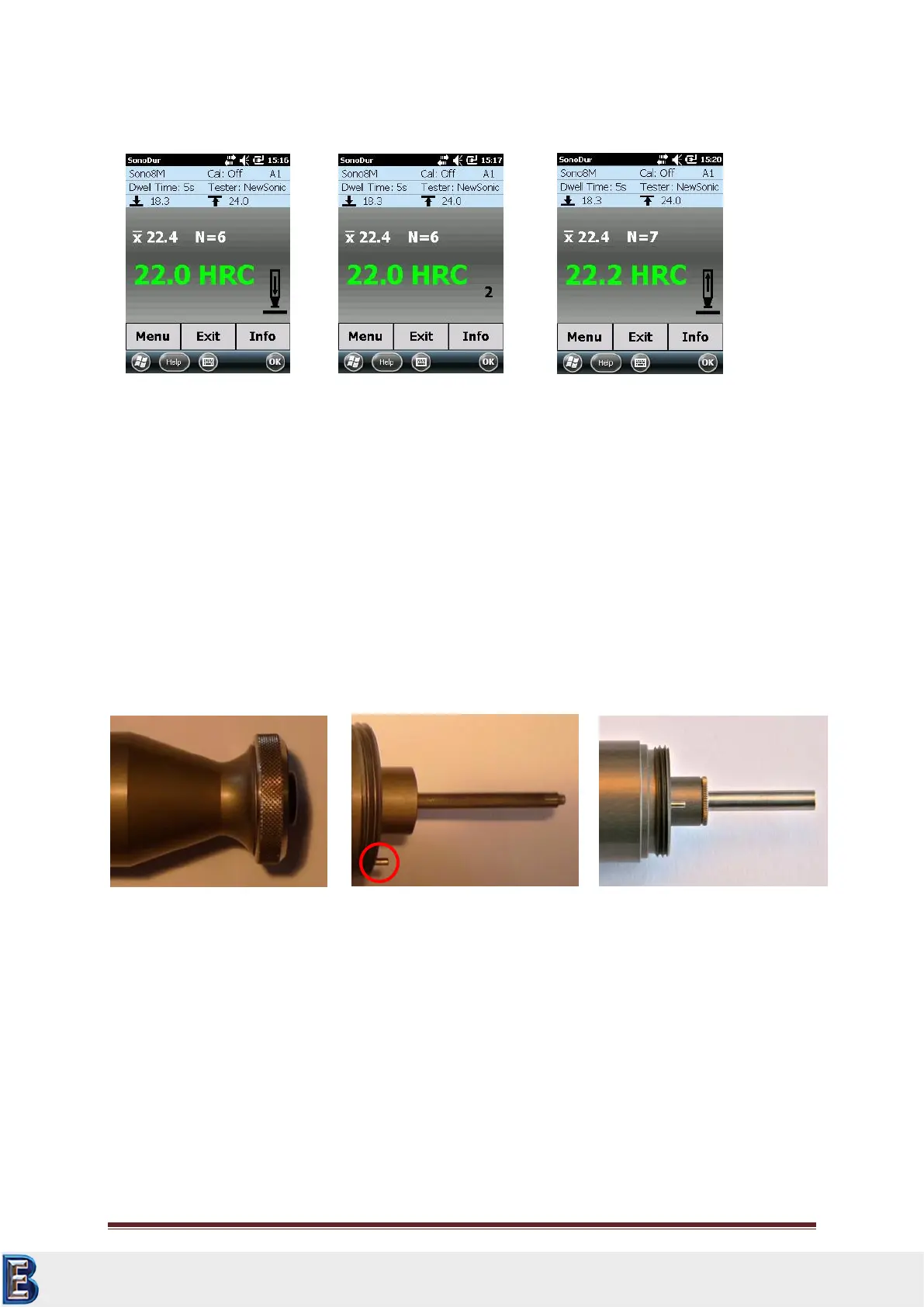

Figure 7.13 until Figure 7.15: Probe movement, countdown of penetration time (in this case, 2 sec),
probe moves up until end point is reached.
When the probe shoe is unscrewed (Figure 7.16), the switching sleeve protrudes approximately 5
mm from the casing and starts the motor once it is placed on the material surface (automatic
measurement) by activating the micro switch (red circle). Figure 7.17 show manual measurements
with free vibrating rod or by unscrewing a protective sleeve (Figure 7.18) for measurements in places
with difficult access.
Figure 7.16
Figure 7.17
Figure 7.18
Figure 7.13
Figure 7.14
Figure 7.15
