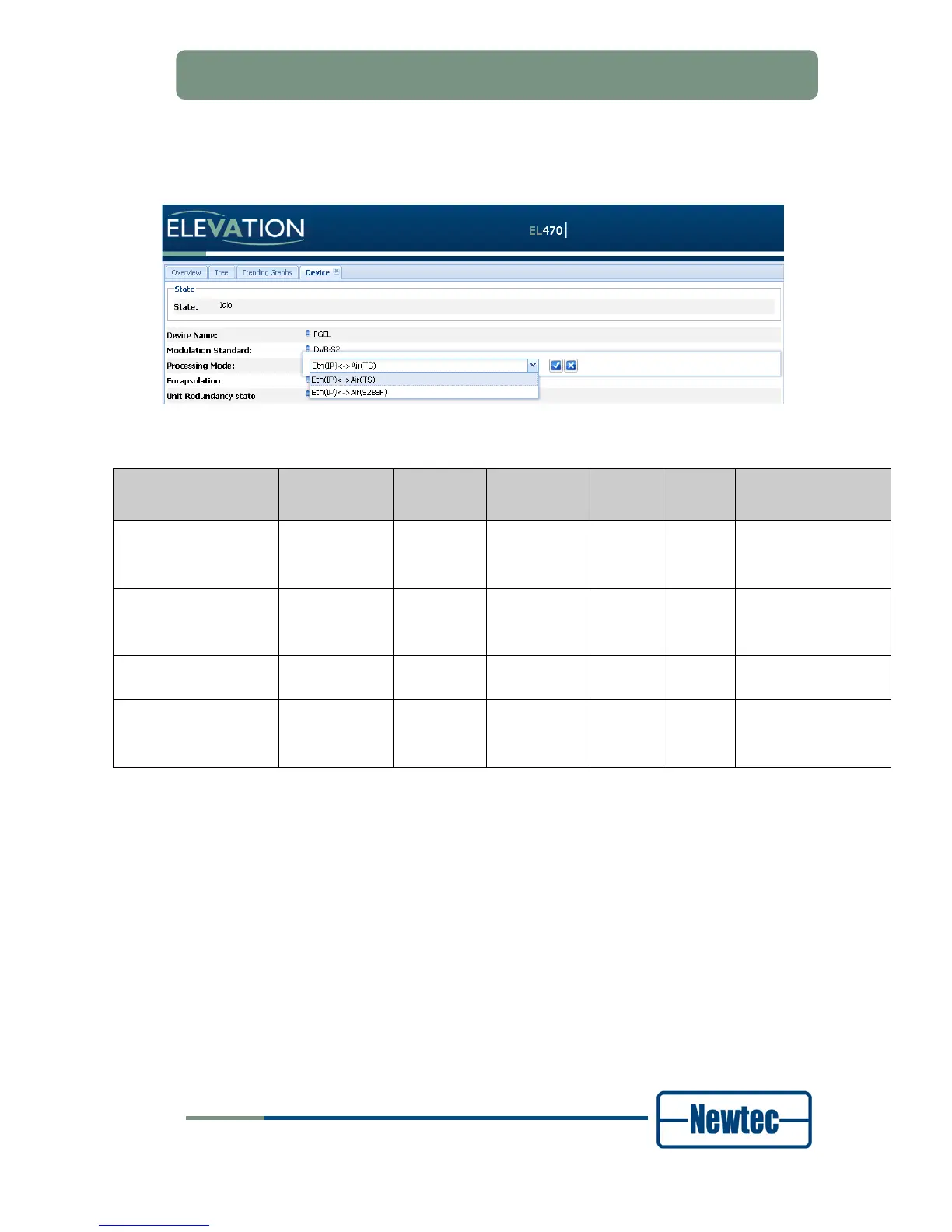

Figure 64 shows a screenshot of the available processing modes and details the
properties of each processing mode.
Figure 64- Processing Modes Selection
Processing mode Interface
Interface
Data Type
Over Air DVB-S DVB-S2 Ethernet Mode
Eth(IP) <-> Air (TS) Ethernet IP TS
✓ ✓
L2 Ethernet bridge
L3 IP bridge
L3 IP router
Eth(IP) <-> Air (XPE) Ethernet IP S2BBF
✗ ✓
L2 Ethernet bridge
L3 IP bridge
L3 IP router
Eth(ntS2BBF) <-> Air
(S2BBF)
Ethernet S2BBF S2BBF
✗ ✓
Transparent BBF
Forwarding
Eth(IP) <-> Air (GSE) Ethernet IP S2BBF
✗ ✓
L2 Ethernet bridge
L3 IP bridge
L3 IP router
Table 11 - - Processing Modes in IP Applications
