Monitor the ACM Controller
 Click on the Synoptic on the FlexACM block;

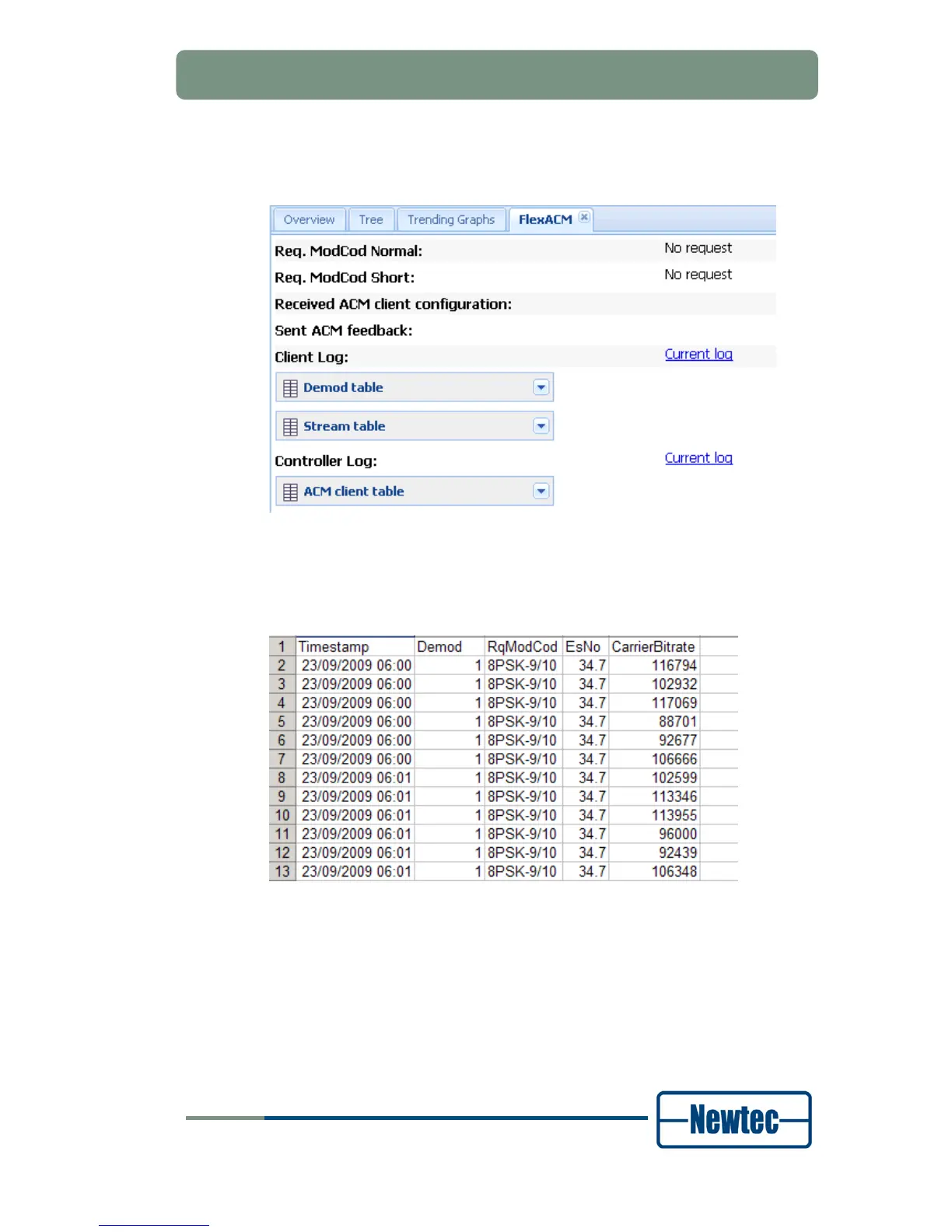

Figure 81 – Monitoring ACM Controller
 Click ACM current log to check the current log file;
 An excel file opens with an overview of all received feedback messages
within the current six hours, refer to Figure 82);
Figure 82 – Extract from ACM current log file
 Click on Demod Table to Check the ACM status:
 The following screen is shown;
