Physical Description
User Manual for EL170/970/470 IP Satellite Modulator/
Demodulator/Modem
version 4.2
51
SHAPING THE FUTURE OF SATELLITE COMMUNICATIONS

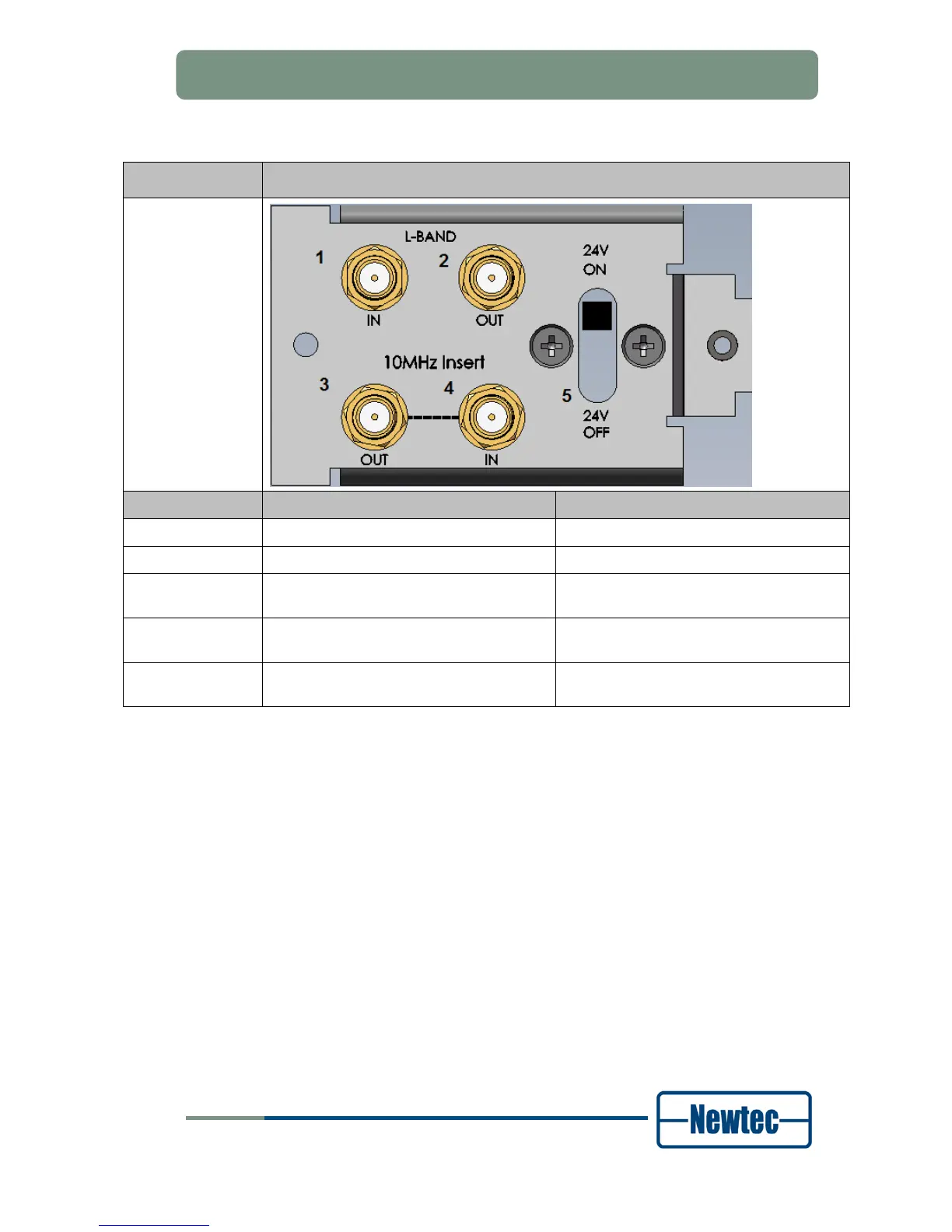

Connector Back Panel 07 / Description
Connector Technical Specifications Signalling Type
1. L-BAND IN SMA (Female) 50 Ohm L-band input, looped to Mod Out of BP01
2. L-BAND OUT SMA (Female) 50 Ohm L-band + 10MHz Out
3. 10 MHz Insert
OUT
SMA (Female) 50 Ohm 10MHz output, looped to 10MHz input
4. 10 MHz Insert
IN
SMA (Female) 50 Ohm 10MHz input, Looped to 10MHz Out
5. 24V ON/24
OFF
